Запчасти Case 621G (90.116.040) - FRONT FENDER INSTALLATION, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

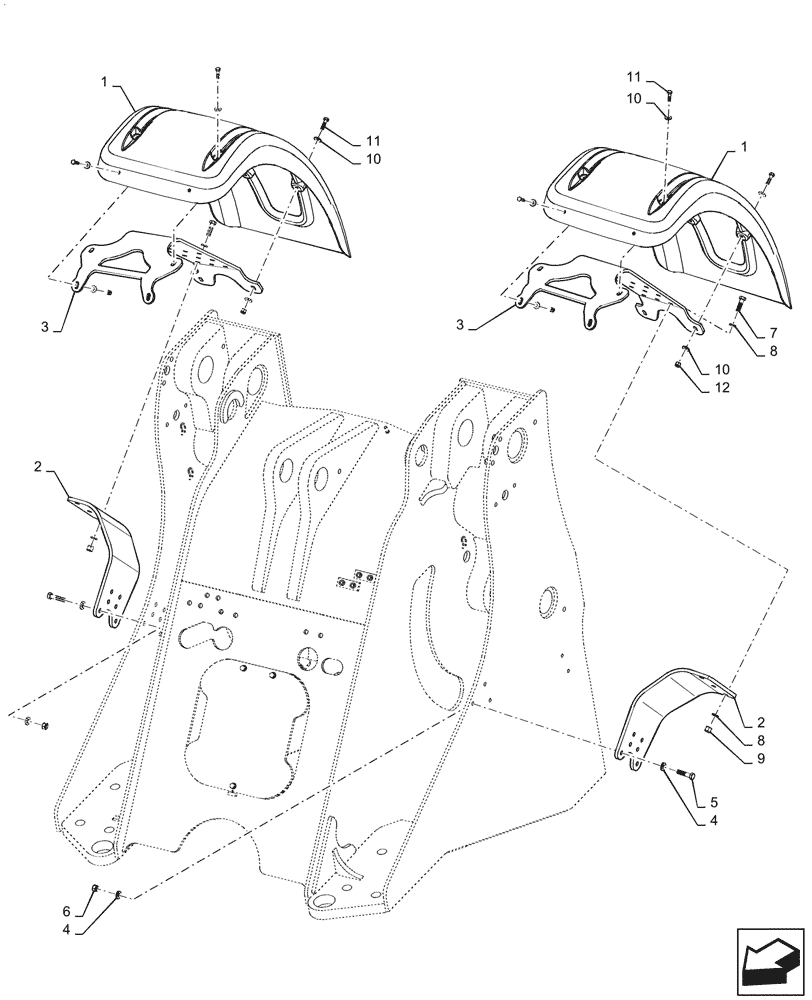

Схема запчастей Case 621G - (90.116.040) - FRONT FENDER INSTALLATION, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
11
9
8
2
8
10
1
3
4
5
10
2
6
1
7
4
11
3
10

Артикул

Название

Примечание

Количество

1

87355957

FENDER

Front, Standard, Gray

2шт.

1

84312729

FENDER

Front, Standard, NH Bright Yellow

2шт.

2

47902090

BRACKET

Fender, Gray

2шт.

2

84312796

BRACKET, SUPPORTING

Fender, NH Bright Yellow

2шт.

3

47958118

BRACKET

Fender, Gray

2шт.

3

47958119

BRACKET

Fender Mounting, NH Bright Yellow

2шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

6

829-1412

NUT,M12, Cl 10.9

6шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

6шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

10

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

24шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

Выбрано товаров: 15
