(90.105.010) - UPPER ARTICULATION COVER

Запчасти Case 621G (90.105.010) - UPPER ARTICULATION COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

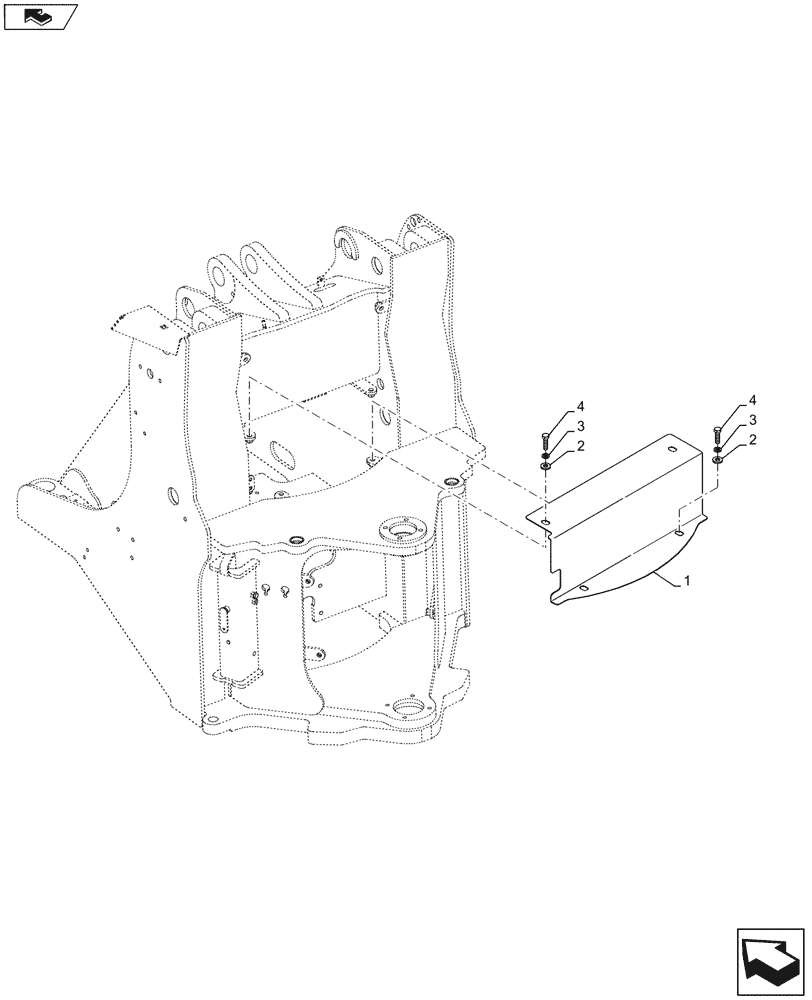

Схема запчастей Case 621G - (90.105.010) - UPPER ARTICULATION COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
3
1
4
2
4
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47838450

COVER

Front Articulation

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

3

892-11012

LOCK WASHER,M12

4шт.

4

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.
