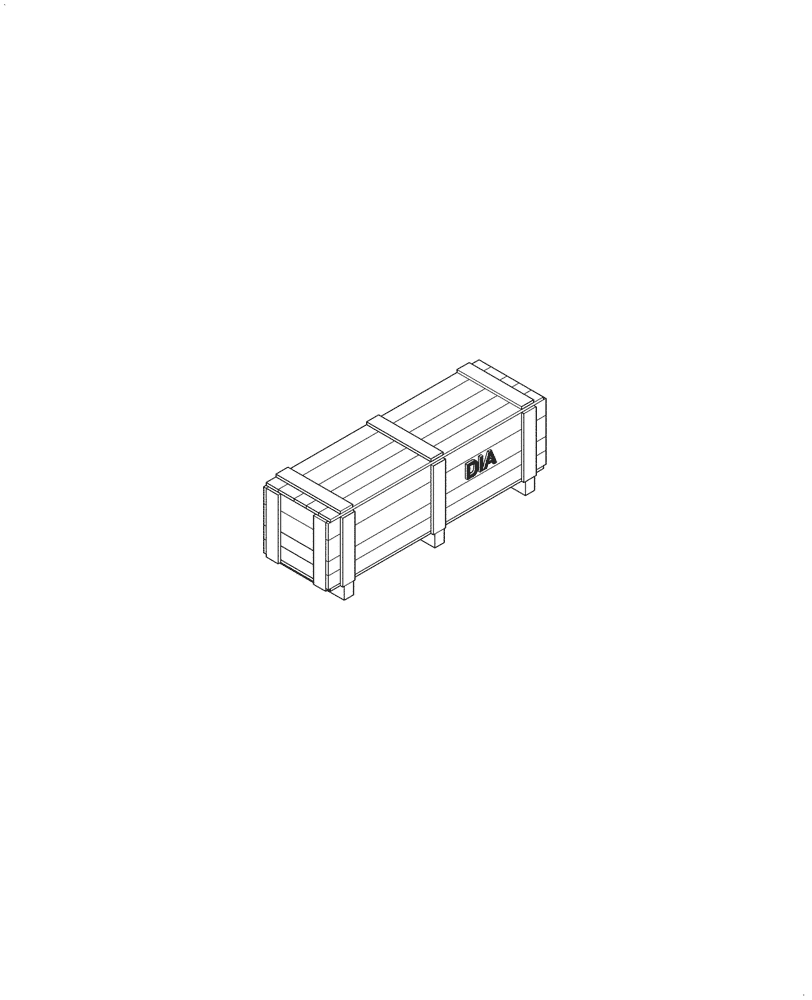

Запчасти Case 621G (88.100.90[02]) - DIA KIT, WINDSHIELD GUARD (88) - ACCESSORIES

1

47687035

KIT

DIA KIT, Windshield Guard, Incl 2 - 12

1шт.

2

47911514

INSTRUCTION

Instruction Sheet

1шт.

3

47713940

SCREEN

Lower Windshield, RH

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

34шт.

6

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

22шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

9

47713926

PLATE

Screen, Lower Center

1шт.

10

47867829

BRACKET

Support, for WH

2шт.

11

47713200

GUARD

Windshield

1шт.

12

47713942

SCREEN

Lower Windshield, LH

1шт.
