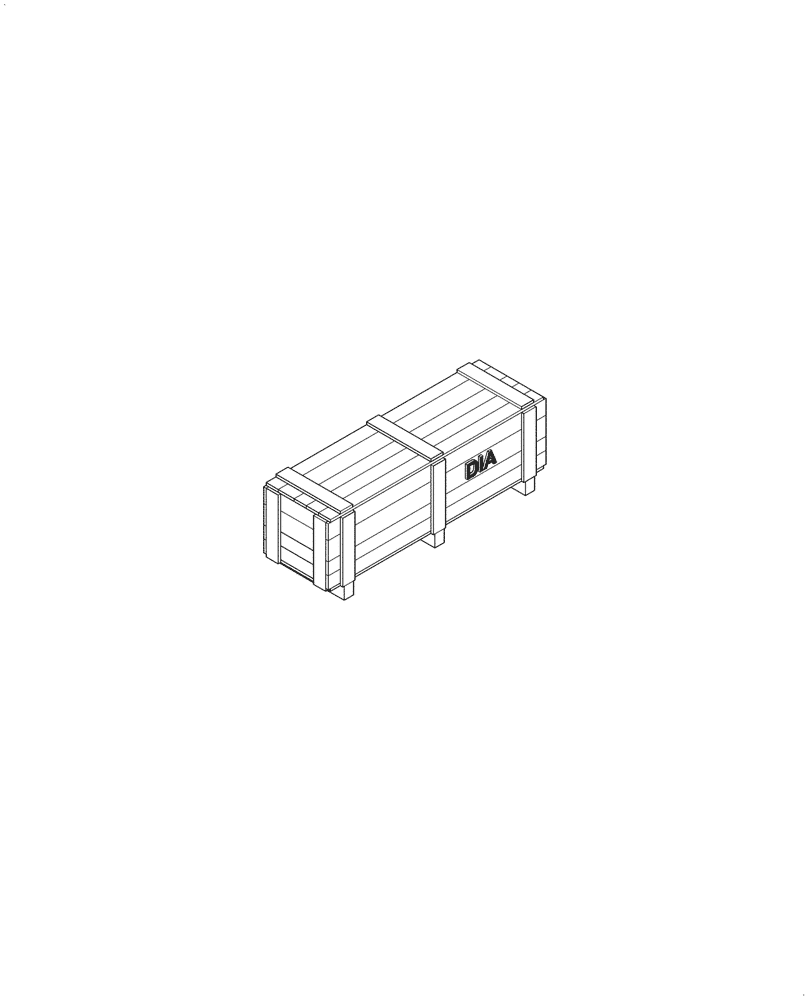

Запчасти Case 621G (88.100.90[01]) - DIA KIT, SKID PLATE (88) - ACCESSORIES

1

47857702

DIA KIT, Skid Plate, Incl 2 - 10

KIT

1шт.

2

47857710

Instructions

INSTRUCTION

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

17шт.

4

892-11012

LOCK WASHER,M12

21шт.

5

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

21шт.

6

87597598

SKID PLATE

Front Right

1шт.

7

87597597

SKID PLATE

Front Left

1шт.

8

47857561

PLATE

Skid

1шт.

9

87598267

COVER

Transmission Drain

1шт.

10

87598264

SKID PLATE

1шт.
