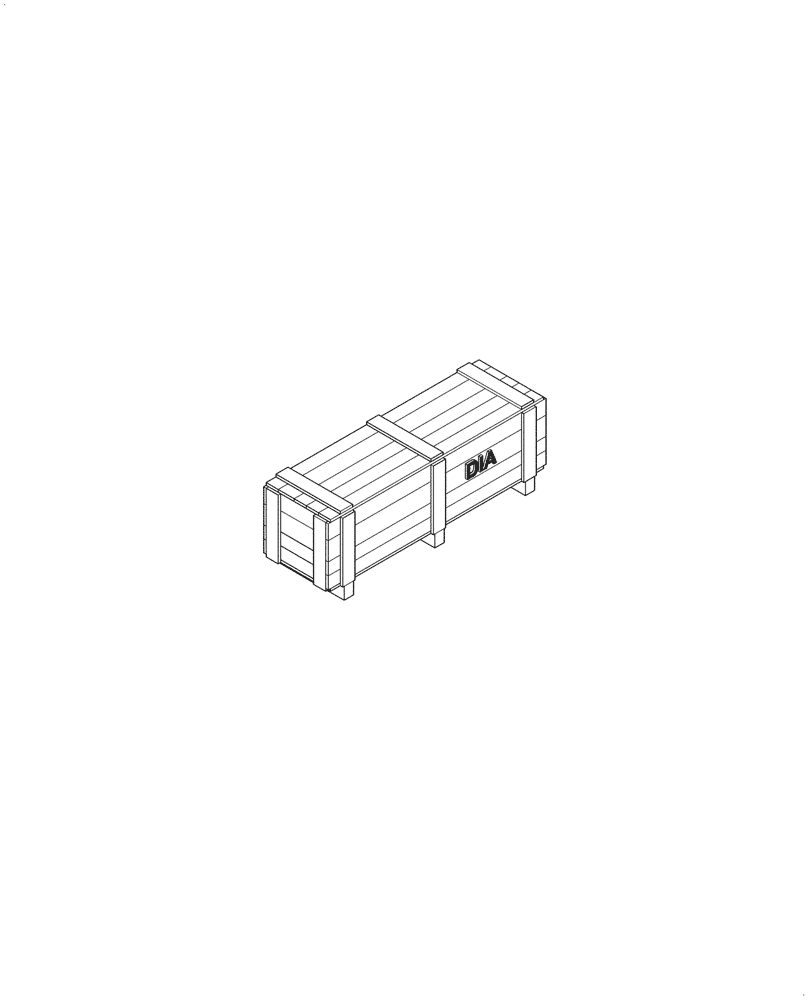

Запчасти Case 621G (88.100.55[04]) - DIA KIT, WASTE HANDLER LIGHTS (88) - ACCESSORIES

1

47687036

KIT

DIA KIT, Waste Handler Lights, Incl 2 - 11

1шт.

2

47922030

INSTRUCTION

Instruction Kit

1шт.

3

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

4

47382628

MOUNT

Light Mount, LH

1шт.

5

47400118

MOUNT

Light Mount, RH

1шт.

6

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

8

248-23108

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

10

47400123

SCREEN

Light Screen

2шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.
