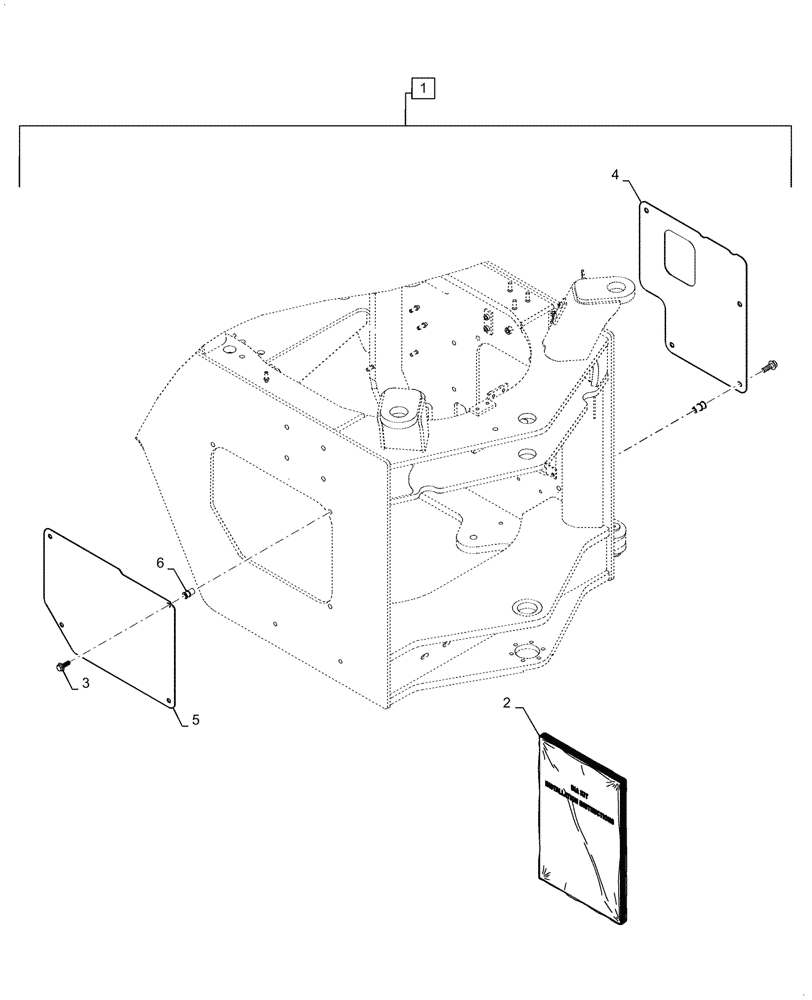

Запчасти Case 621G (88.100.39[03]) - DIA KIT, REAR CHASSIS SIDE GUARDS (88) - ACCESSORIES

1

47855581

DIA KIT, Rear Chassis Side Guards, Incl 2 - 6

KIT

1шт.

2

47855582

Instruction Sheet

INSTRUCTION

1шт.

3

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

8шт.

4

47852399

COVER ASSY

LH, Case

1шт.

5

84561038

COVER

RH

1шт.

6

84139978

NUT,M12 x 1.75

8шт.
