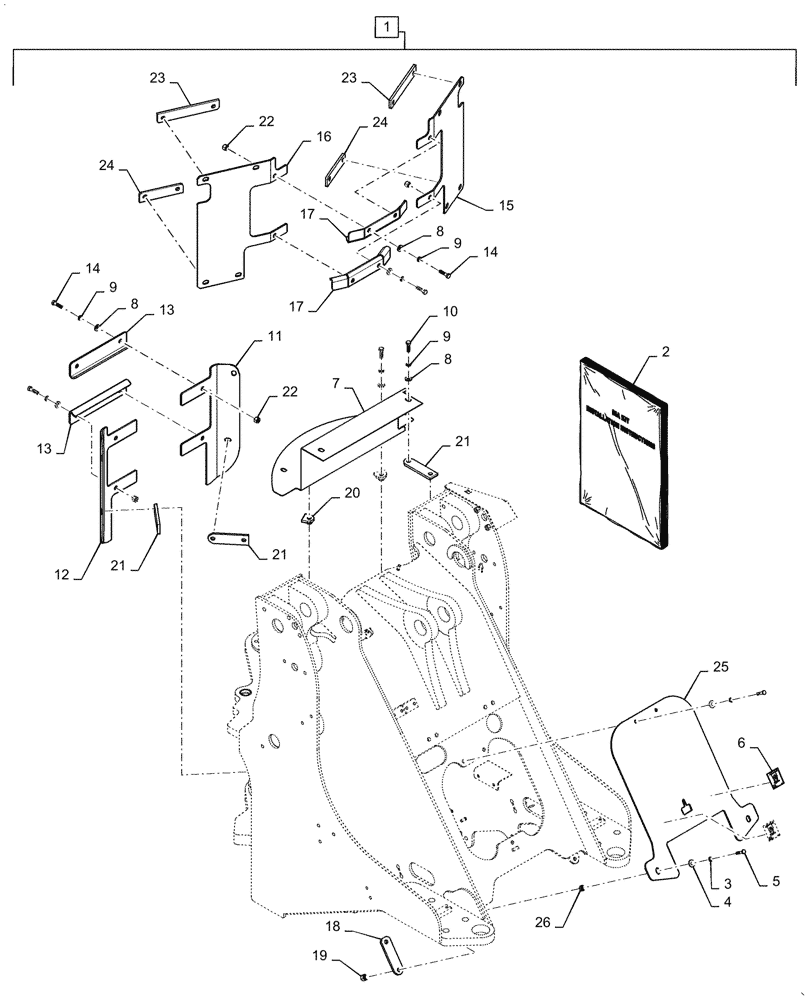

Запчасти Case 621G (88.100.39[01]) - DIA KIT, FRONT ARTICULATION GUARDS (88) - ACCESSORIES

1

47844068

DIA KIT, Front Articulation Guards, Incl 2 - 26

KIT

1шт.

2

47844079

Instruction Sheet

INSTRUCTION

2шт.

3

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

5шт.

4

892-11010

LOCK WASHER,M10

5шт.

5

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

5шт.

6

84409663

DECAL

Tie Down

2шт.

7

47838450

COVER

Front Articulation Cover

1шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

24шт.

9

892-11012

LOCK WASHER,M12

24шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

11

47836765

JOINT

Front Articulation Joint, LH

1шт.

12

47836761

JOINT

Front Articutation Joint, RH

1шт.

13

47400229

PROTECTION PLATE

Front Articulation, Plate

2шт.

14

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

20шт.

15

47825042

JOINT

Rear Articulation Joint, LH

1шт.

16

47825045

JOINT

Rear Articulation Joint, RH

1шт.

17

47400210

PROTECTION PLATE

Rear Articulation Joint, Plate

2шт.

18

47444489

BRACKET

Weldnut

2шт.

19

830-62010

NUT

M10 Long

2шт.

20

360476A1

BRACKET

Weldnut

2шт.

21

47407577

CLAMP

Weldnut

6шт.

22

830-62012

NUT

M12 Long

8шт.

23

47407583

BLOCK

Rear Articulation Guard Mounting

2шт.

24

47407586

BLOCK

Rear Articulation Guard Mounting

2шт.

25

47400155

COVER

Front Axle Cover

1шт.

26

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

2шт.
