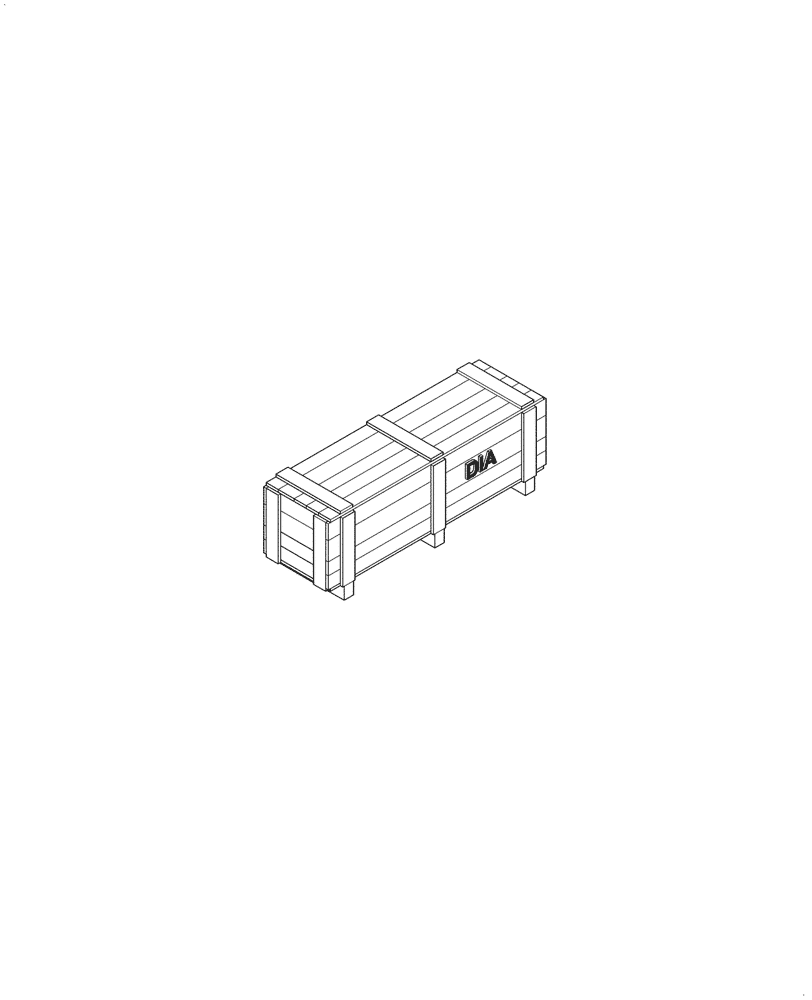

Запчасти Case 621G (88.100.35[04]) - DIA KIT, ACCESSORY LINE, XT (88) - ACCESSORIES

1

47930623

KIT

DIA KIT, Accesory Line, Incl 2 - 21

1шт.

2

47930747

INSTRUCTION

Instruction Sheet

1шт.

3

87444440

BRACKET

Accessory Hose Mounting

1шт.

4

372453A1

BLOCK

Tube Mounting

2шт.

5

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

6

87445809

HYD TUBE,25mm OD x 848mm, 472mm L

1шт.

7

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

2шт.

8

87452607

HYD TUBE,25mm OD x 928mm, 561mm L

1шт.

9

87304933

HOSE ASSY.

Accessory Lower

1шт.

10

87304930

FLEXIBLE HOSE

Accessory Upper

1шт.

11

367658A1

PLATE

Clamp Cover

1шт.

12

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

13

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

2шт.

14

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

17

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

18

8500858

PLATE

Clamp Cover

2шт.

19

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

20

892-11010

LOCK WASHER,M10

2шт.

21

87452747

CLAMP,33.4mm ID

2шт.
