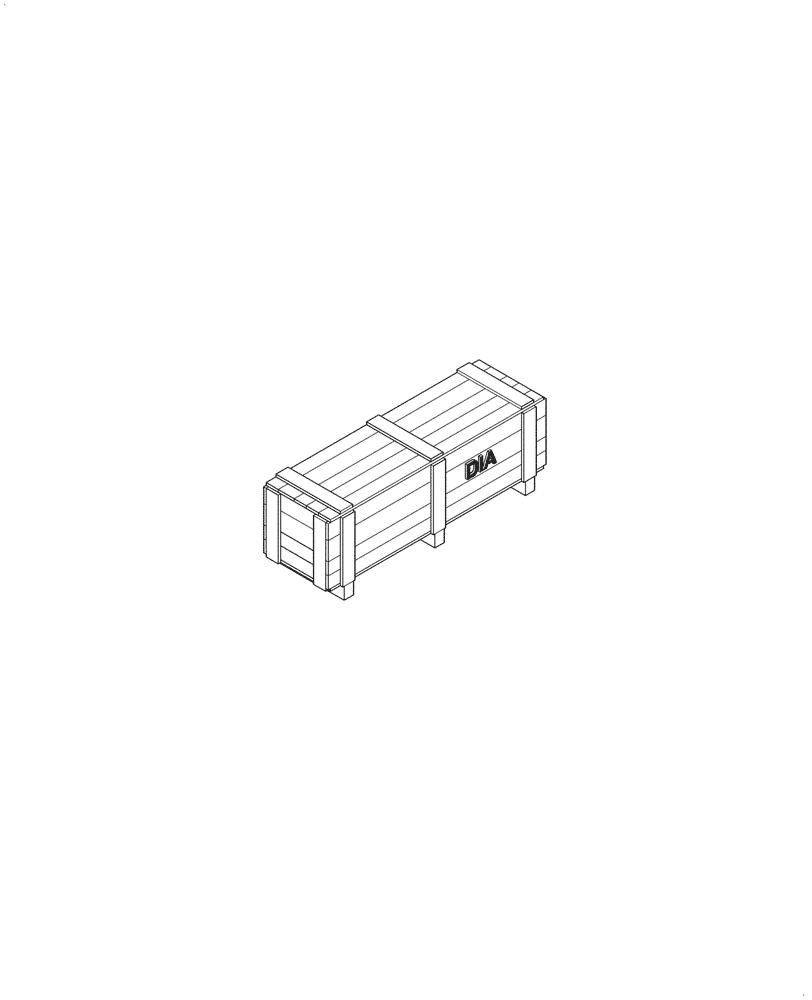

Запчасти Case 621G (88.100.35[03]) - DIA KIT, ACCESSORY LINE, Z - BAR (88) - ACCESSORIES

1

47930622

KIT

DIA KIT, Accesory Line, ZBAR, Incl 2 - 12

1шт.

2

47930746

INSTRUCTION

Instruction Sheet

1шт.

3

86983689

HYD TUBE,25.40mm OD x 585mm, 178 mm L

Third Spool, Right

1шт.

4

367489A1

BLOCK

Tube Mounting, Unfinished

2шт.

5

372453A1

BLOCK

Tube Mounting

4шт.

6

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

7

372102A3

HOSE ASSY.

Third Spool

2шт.

8

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

2шт.

9

367658A1

PLATE

Clamp Cover

2шт.

10

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

12

86983688

HYD TUBE,25.40mm OD

Third Spool, Left

1шт.
