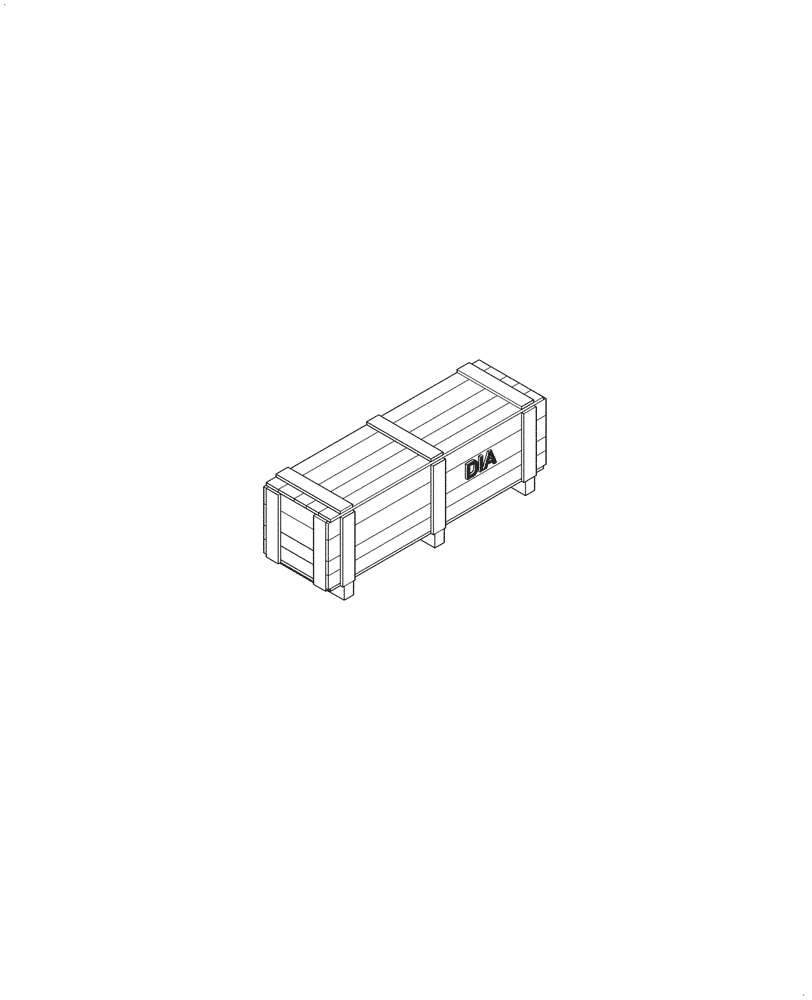

Запчасти Case 621G (88.100.35[02]) - FOURTH SPOOL CONVERSION KIT (88) - ACCESSORIES

1

472191011

KIT

Fourth Spool Conversion, Incl 2 - 21

1шт.

2

84210241

INSTRUCTION

Instruction Sheet

1шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

4

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

5

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

2шт.

6

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

7

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

2шт.

8

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

9

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

11

8500858

PLATE

Clamp Cover

2шт.

12

87304930

FLEXIBLE HOSE

Accessory

1шт.

13

87304933

HOSE ASSY.

Accessory

1шт.

14

87444440

BRACKET

Accessory Hose Mounting

1шт.

15

87445816

HYD TUBE,25 mm OD x 848, 590 mm L

Left

1шт.

16

87452609

HYD TUBE,25 mm OD x 928, 695 mm L

Right

1шт.

17

87452747

CLAMP,33.4mm ID

2шт.

18

892-11010

LOCK WASHER,M10

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

20

NSS

NOT SOLD SEPARAT

Clamp Cover, Incl in 1

1шт.

21

372453A1

BLOCK

Tube Mounting

2шт.
