Запчасти Case 621G (82.300.050) - VAR - 424914 - BUCKET, 2.5 CU YD (82) - FRONT LOADER & BUCKET

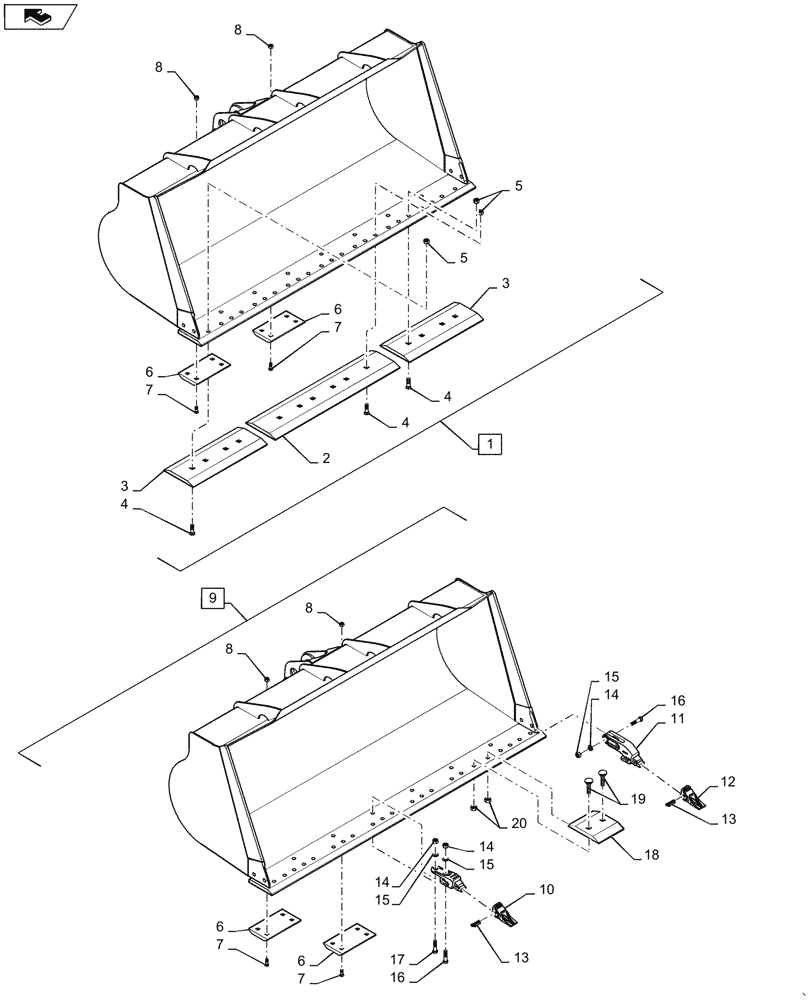

Схема запчастей Case 621G - (82.300.050) - VAR - 424914 - BUCKET, 2.5 CU YD (82) - FRONT LOADER & BUCKET
13
19
1
18
8
17
4
5
4
2
15
14
16
11
14
9
8
7
3
12
20
6
15
14
6
7
13
7
10
7
3
8
15
6
5
6
16
8
4

Артикул

Название

Примечание

Количество

1

84294105

BUCKET

2.5 Cu Yd Bucket With Bolt On Edge, Incl 2 - 8

1шт.

2

372081A1

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 254mm W x 1324mm L

Center Bolt On

1шт.

3

372082A2

EDGE, CUTTING

Outer Bolt On

2шт.

4

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

Used With 2, 3

16шт.

5

425-1612

NUT,3/4"-10, G5, Hvy

Used With 2, 3

16шт.

6

360939A1

PLATE

Bolt On Skid

2шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

Used With 6

8шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

Used With 6

8шт.

9

84294109

BUCKET

2.5 Cu Yard Bucket with Bolt on Teeth, Incl 6 - 8, 10 - 20

1шт.

10

84168133

BUCKET TOOTH SHANK

Adapter Bolt On Center

6шт.

11

84168129

BUCKET TOOTH SHANK

Adapter Bolt On Corner

2шт.

12

84168130

BUCKET TOOTH POINT

8шт.

13

84168132

BUCKET TOOTH KEY

8шт.

14

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

16шт.

15

425-1612

NUT,3/4"-10, G5, Hvy

16шт.

16

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

10шт.

17

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

6шт.

18

86992661

CUTTING EDGE

Segment Between Teeth

7шт.

19

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

16шт.

20

425-1612

NUT,3/4"-10, G5, Hvy

16шт.

Выбрано товаров: 20
