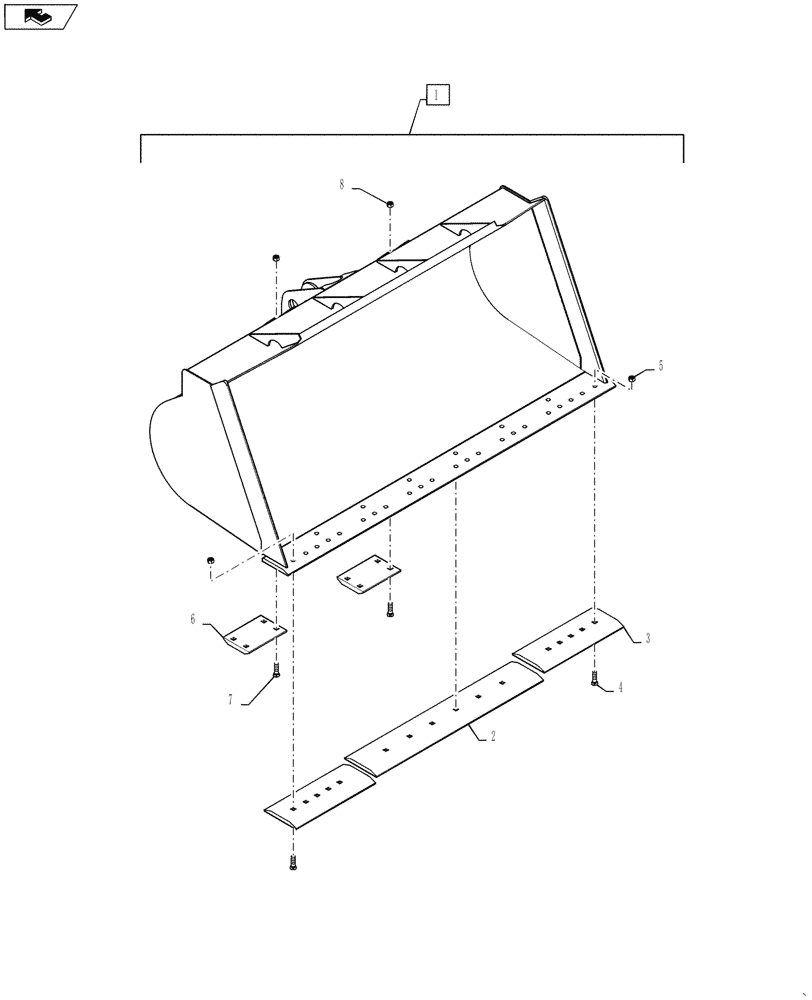

Запчасти Case 621G (82.300.040) - VAR - 424259 - BUCKET, 4.5 CU YD (82) - FRONT LOADER & BUCKET

1

84269187

BUCKET, LIGHT MATERI

4.5 Cu Yd, Incl 2 - 8

1шт.

2

372081A1

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 254mm W x 1324mm L

Center Bolt on

1шт.

3

372082A2

EDGE, CUTTING

Outer Bolt on

2шт.

4

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

16шт.

5

425-1612

NUT,3/4"-10, G5, Hvy

16шт.

6

360939A1

PLATE

Bolt on

2шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

8шт.
