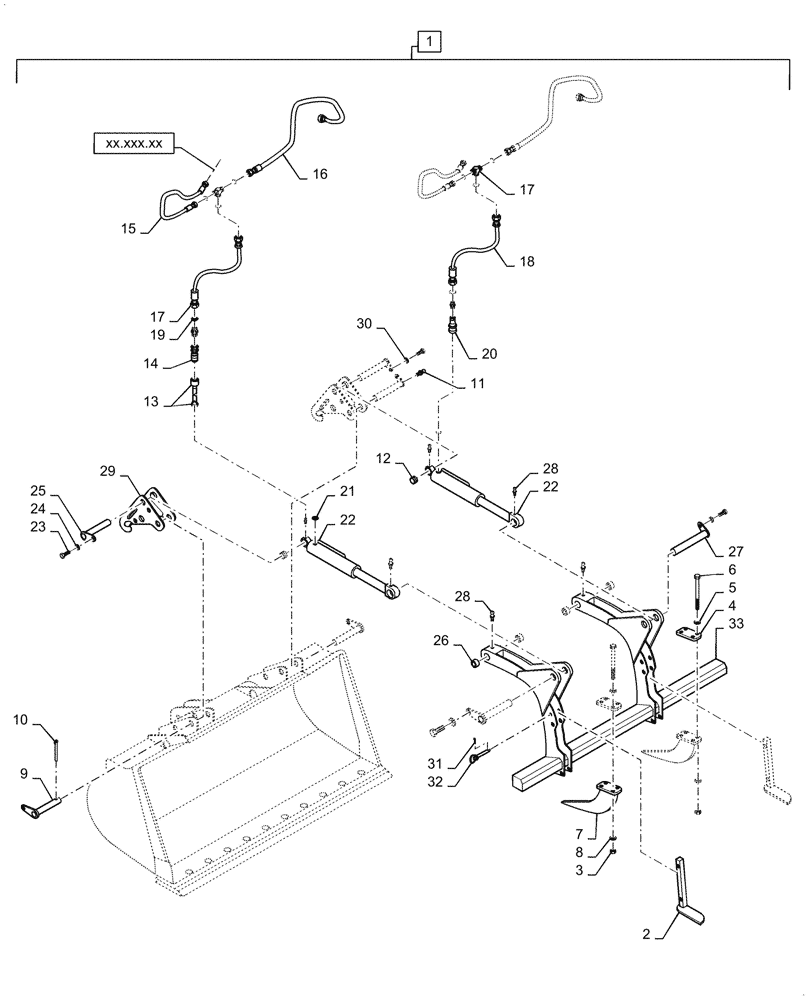

Запчасти Case 621G (82.300.030) - VAR - 424918 - BUCKET, 3.0 CU YD WITH GRAPPLE (82) - FRONT LOADER & BUCKET

1

84269186

BUCKET

3.0 Cu Yd Bucket With Grapple, Incl 2 - 33

1шт.

2

84201787

STAND

Kick

2шт.

3

9823966

NUT,3/4"-16, G8

16шт.

4

84201786

BRACKET

Tine

4шт.

5

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

16шт.

6

87493291

BOLT,Hex, 3/4" - 10 x 8", Gr 8

16шт.

7

84201785

TINE

Grapple

4шт.

8

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

16шт.

9

84201780

LOCK PIN

2шт.

10

84215402

LOCK PIN

7/16

4шт.

11

219-22

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

12

84215405

BUSHING

Cylinder

4шт.

13

114533A1

DUST CAP

Hydraulic Line

1шт.

14

84215408

FITTING

Quick Coupler

1шт.

15

84215403

HYDRAULIC HOSE

Right

2шт.

16

84215395

HYDRAULIC HOSE

Left

2шт.

17

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

18

84215404

HYDRAULIC HOSE

Lower

2шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

20

84215410

FITTING

Quick Coupler

1шт.

21

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

22

84215393

CYLINDER

Grapple

2шт.

23

280853

BOLT,1/2"-13 x 1.563" OAL, Cl 8, Full Thd

6шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

25

84215392

PIVOT PIN

Frame to Bucket

2шт.

26

84201782

BUSHING

Pivot

4шт.

27

84201784

PIN

Cylinder

4шт.

28

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

2шт.

29

84215399

FRAME

Pivot Mount

2шт.

30

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

0.531X1.062X0.095 HTS ZND

6шт.

31

84215400

LOCK PIN

5/16

4шт.

32

84201788

PIN

Kick Stand

4шт.

33

84201781

FRAME

Welded Grapple

1шт.
