Запчасти Case 621G (82.100.060) - VAR - 482047, 424917, 424248 - CNH QUICK COUPLER, XT/TC (82) - FRONT LOADER & BUCKET

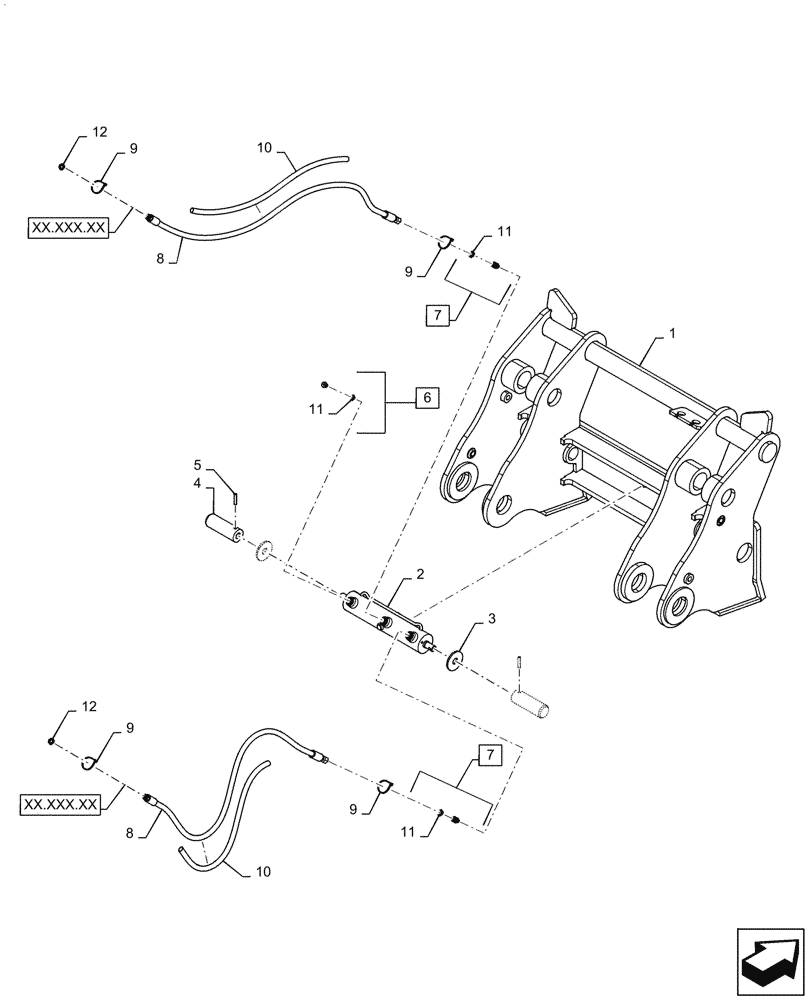

Схема запчастей Case 621G - (82.100.060) - VAR - 482047, 424917, 424248 - CNH QUICK COUPLER, XT/TC (82) - FRONT LOADER & BUCKET
4
9
8
11
10
12
9
xx.xxx.xx
5
6
12
8
11
7
1
10
2
11
3
9
9
xx.xxx.xx
7

Артикул

Название

Примечание

Количество

1

87736639

FRAME

Bucket Coupler, XT

1шт.

2

84139131

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 206.5mm Stroke

1шт.

3

87741104

INDICATOR

Visual, Ring

2шт.

4

87736653

SPECIAL PIN,50.8mm OD x 145.57mm L

Plunger

2шт.

5

87023162

PIN,9.53mm OD x 44.45mm L

Plunger

2шт.

6

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 11

1шт.

7

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 11

2шт.

8

87741102

HOSE ASSY.

Hydraulic, 1295mm - 3/8 Dia

2шт.

9

86566989

CABLE TIE,208mm L

4шт.

10

87497870

PROTECTIVE SLEEVE

HYD Hose Protector

2шт.

11

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

Выбрано товаров: 12
