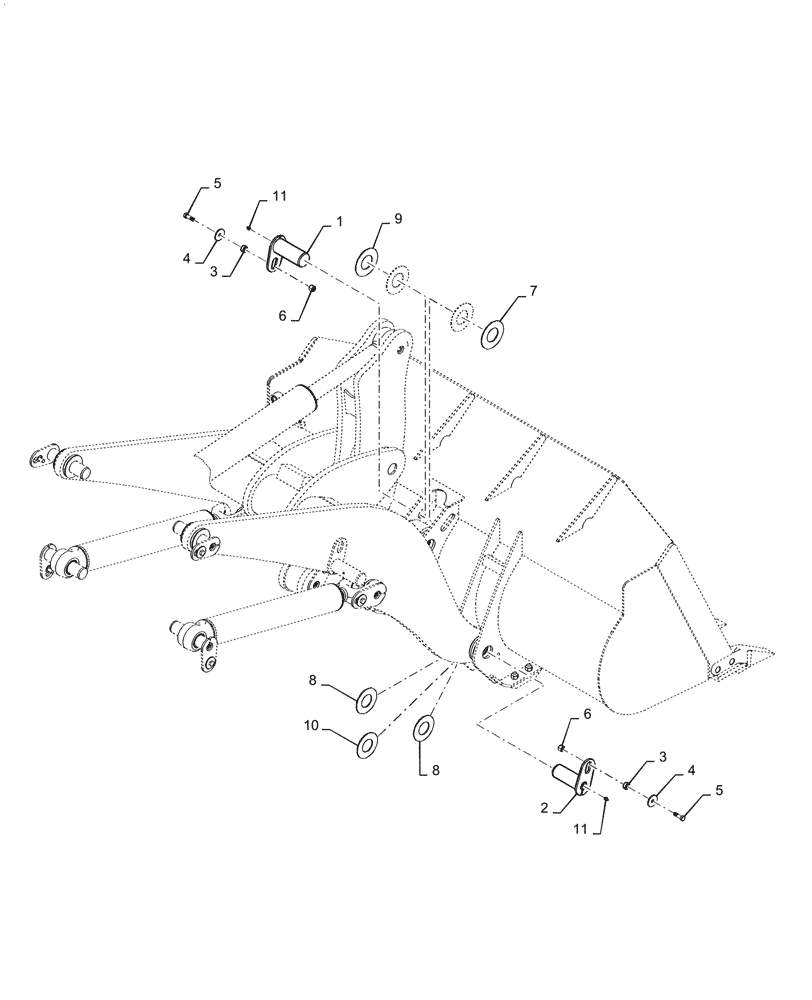

Запчасти Case 621G (82.100.020) - VAR - 782537, 782851 - LIFT ARM PIN, Z BAR LIFT ARM AND XR/LR (82) - FRONT LOADER & BUCKET

1

87305263

PIVOT PIN,76.2mm OD x 193.5mm L

CNH CE Gray

1шт.

2

87305262

PIVOT PIN

CNH CE Gray

2шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

77.6 I.D (3.5 THK)

1шт.

7

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

71.3 I.D (1.6 THK)

1шт.

8

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

71.3 I.D (3.5 THK)

1шт.

9

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

Lift Arm

2шт.

10

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71.3 I.D (2.5 THK)

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting

3шт.
