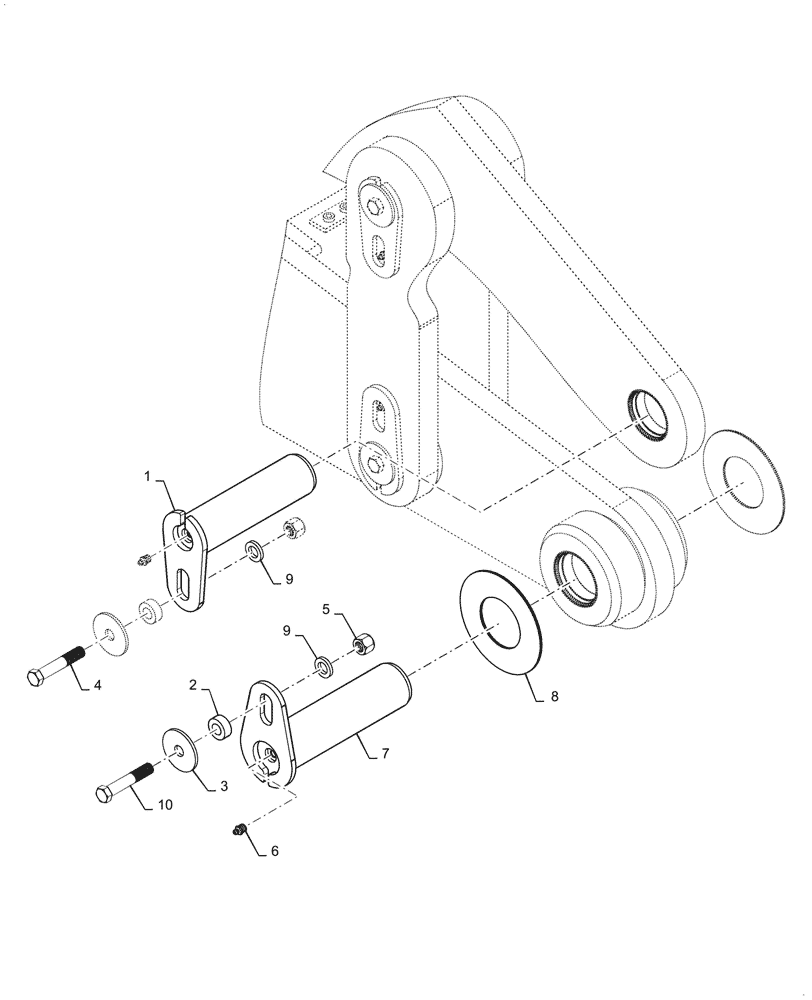

Запчасти Case 621G (82.100.010) - VAR - 782537 - LIFT ARM PIN XT/TC (82) - FRONT LOADER & BUCKET

1

379770A2

PIN

Lift Arm CE Gray

2шт.

2

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

4шт.

3

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

4шт.

4

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

5

832-10416

NUT,M16 x 2, Cl 8

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

7

87437274

HEADED PIN

2шт.

8

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

77.6 I.D (3.5 THK)

1шт.

9

441822A1

WASHER

77.6 I.D (1.6 THK)

1шт.

10

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

Lift Arm

1шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

12

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.
