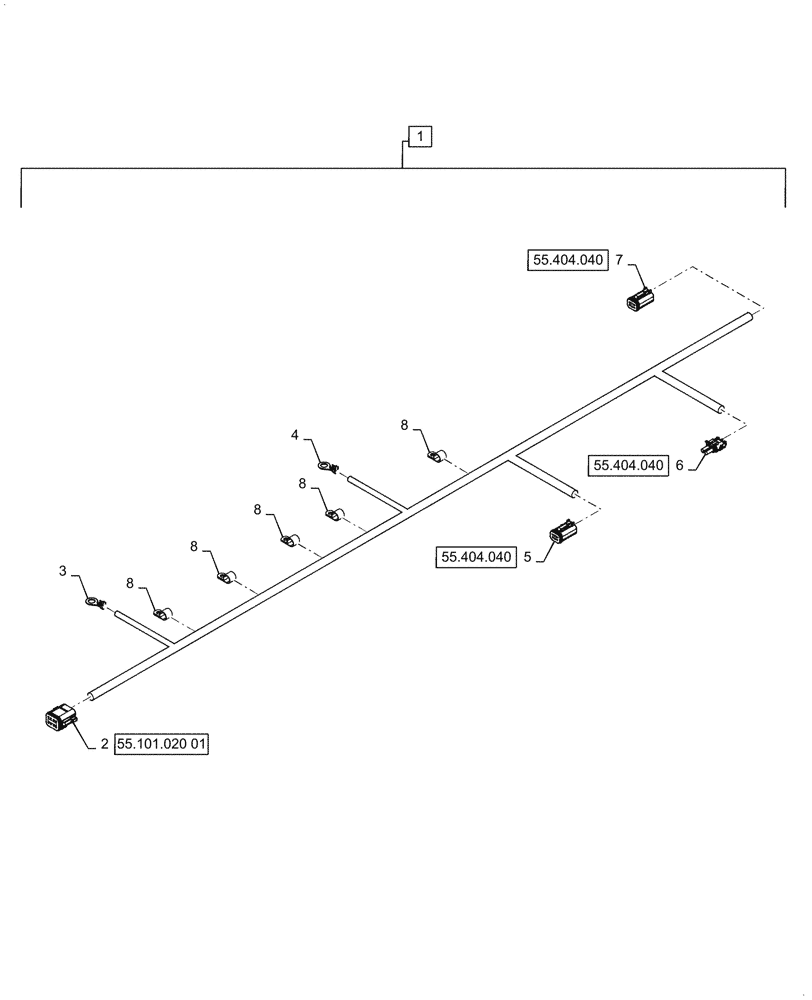

Запчасти Case 621G (55.990.010[02]) - HOOD HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47901519

WIRE HARNESS

Hood, Incl 2 - 8

1шт.

2

87700325

ELEC CONNECTOR,Female, 8 Cavities

Hood to Engine

1шт.

2

84806312

LOCKING TAB,Wedge Lock

Wedge Lock

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

3

84140737

TERMINAL CONNECTOR

Ground

1шт.

4

84140737

TERMINAL CONNECTOR

Ground

1шт.

5

87694101

ELEC CONNECTOR,Female, 4 Cavities

Rear Taillamp, RH

1шт.

5

84391166

WIRE CONNECTOR,Male, 4 Pins

1шт.

5

87694148

ELEC CONNECTOR

Wedge Lock

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

4шт.

6

87692855

CONTACT HOUSING,Male, 2 Cavities

License Plate Light

1шт.

6

87692856

CABLE TERMINAL

2шт.

7

87694101

ELEC CONNECTOR,Female, 4 Cavities

Rear Taillamp, LH

1шт.

7

84391166

WIRE CONNECTOR,Male, 4 Pins

1шт.

7

87694148

ELEC CONNECTOR

Wedge Lock

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

5шт.
