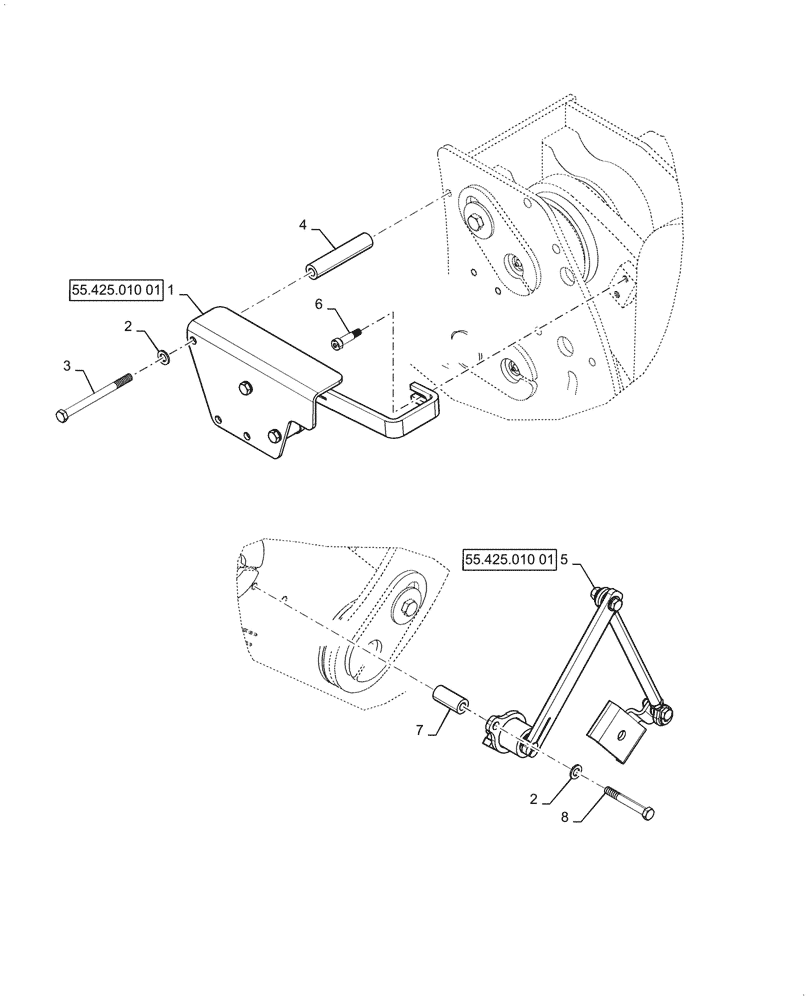

Запчасти Case 621G (55.425.020) - HYDRAULIC SYSTEM, LIFT AND TILT XT (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

EH Lift Sensor, Please Follow Figure Link

1шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

5шт.

3

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

3шт.

4

47786834

SPACER

Support, EH Sensor

3шт.

5

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

1шт.

6

NSS

NOT SOLD SEPARAT

EH Tilt Sensor, Please Follow Figure Link

1шт.

7

47786277

SUPPORT

2шт.

8

47772552

COVER

EH Sensor

1шт.

9

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.
