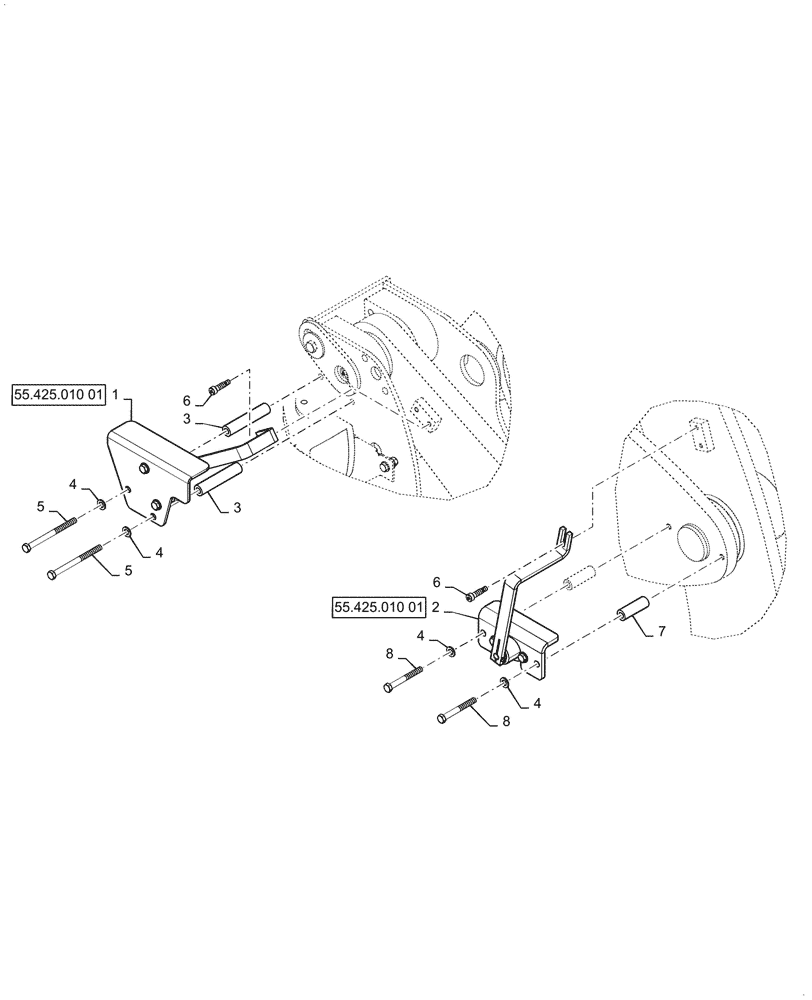

Запчасти Case 621G (55.425.010) - ELECTROHYDRAULIC SENSOR, LIFT AND HOLD, Z-BAR (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

Electro Hydraulic Lift Sensor, Please Follow Figure Link

1шт.

2

NSS

NOT SOLD SEPARAT

Electro Hydraulic Tilt Sensor, Please Follow Figure Link

1шт.

3

47786834

SPACER

Electro Hydraulic Standoff

2шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

5

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

2шт.

6

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

2шт.

7

47788220

SUPPORT

Electro Hydraulic Sensor

2шт.

8

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.
