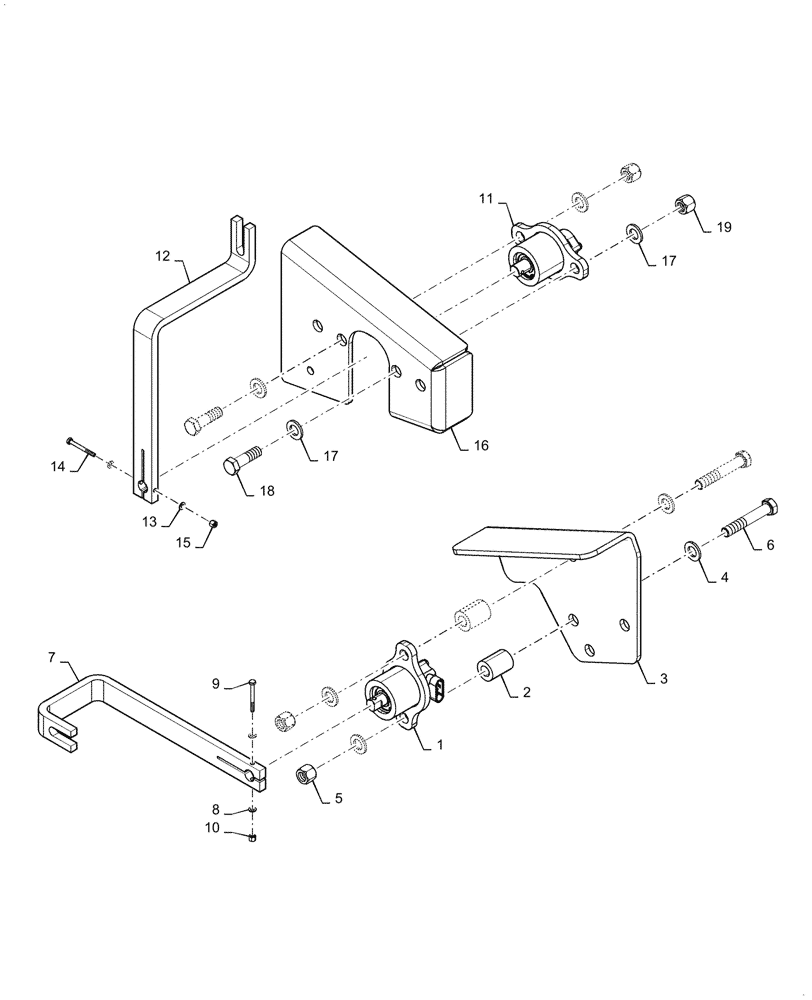

Запчасти Case 621G (55.425.010[01]) - ELECTROHYDRAULIC SENSOR ASSEMBLY, LIFT AND TILT, Z-BAR (55) - ELECTRICAL SYSTEMS

1

47772374

SENSOR

EH, Lift

1шт.

2

47786469

Support

SUPPORT

2шт.

3

47788128

Cover

COVER

1шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

6

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

7

47788120

Arm

ARM

1шт.

8

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

9

87384106

BOLT,M4 x 42.92mm, Cl 8.8

1шт.

10

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

11

47772374

SENSOR

EH, Tilt

1шт.

12

47788254

Arm

ARM

1шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

14

87384106

BOLT,M4 x 42.92mm, Cl 8.8

1шт.

15

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

16

48036177

Cover

COVER

1шт.

17

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
