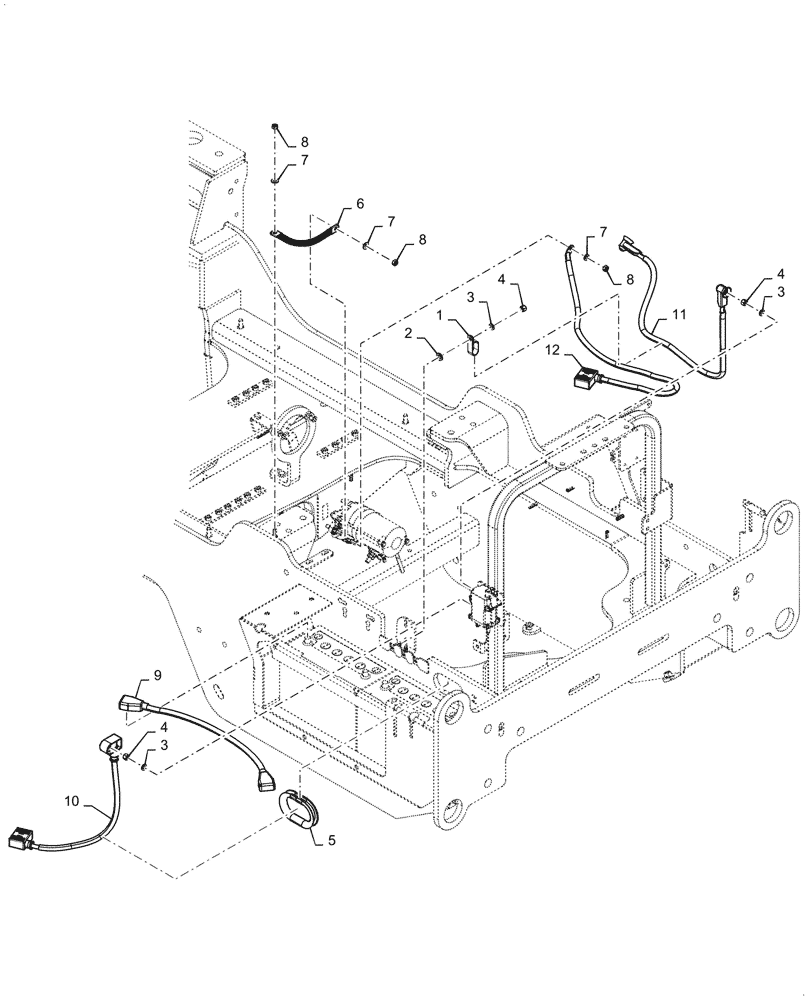

Запчасти Case 621G (55.302.020) - BATTERY CABLE INSTALLATION (55) - ELECTRICAL SYSTEMS

1

R54363

CLAMP

1шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

5

47600216

CONDUIT

Battery Cable

1шт.

6

84269958

GROUND STRAP

1шт.

7

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

3шт.

8

253347A1

NUT,Hex, M10 x 1.5

3шт.

9

84597599

CABLE,635mm L

Battery Crossover

1шт.

10

47871344

CABLE

Pos to Iso

1шт.

11

47861647

CABLE

Pos Iso to Starter

1шт.

12

47871352

CABLE

Neg To Ground

1шт.
