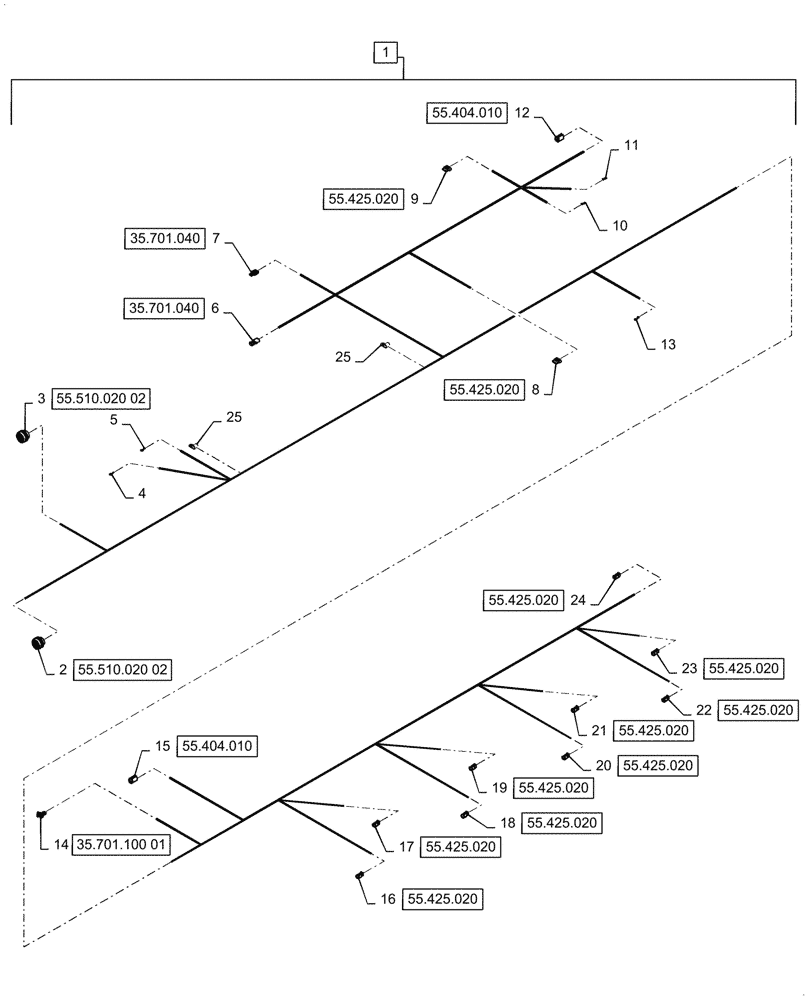

Запчасти Case 621G (55.101.030[02]) - FRONT CHASSIS HARNESS ASSEMBLY, XT (55) - ELECTRICAL SYSTEMS

1

47855598

WIRE HARNESS

Front Chassis, Incl 2 - 25

1шт.

2

87700170

WIRE CONNECTOR

Front to Bottom, EH

1шт.

2

87700175

ELEC CONNECTOR

Shell

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities, O,R,U

3шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

20шт.

3

87704426

ELEC CONNECTOR

Front to Bottom, Standard

1шт.

3

87700175

ELEC CONNECTOR

Shell

1шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavities, A,D-E,G,V-X

6шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

14шт.

4

84426126

TERMINAL

Chassis Ground

1шт.

5

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Roll Back Pressure Switch

1шт.

6

87692856

CABLE TERMINAL

2шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

Coupler Valve

1шт.

7

87692856

CABLE TERMINAL

1шт.

8

84403598

WIRE CONNECTOR

Bucket Angle Sensor

1шт.

8

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

6шт.

9

84403598

WIRE CONNECTOR

Boom Angle Sensor

1шт.

9

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

6шт.

10

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Ground

1шт.

11

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Power

1шт.

12

87694109

ELEC CONNECTOR

Front Combo Lamp, Right

1шт.

12

84253889

JUNCTION

Shell

1шт.

12

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

12

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities 1-5

5шт.

13

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

14

84607243

ELEC CONNECTOR,Female, 2 Cavities

Ride Control Solenoid

1шт.

14

87702681

TERMINAL

2шт.

15

87694109

ELEC CONNECTOR

Front Combo Lamp, Left

1шт.

15

84253889

JUNCTION

Shell

1шт.

15

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

15

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities 1-5

5шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2, Right

1шт.

16

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2, Left

1шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1, Right

1шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1, Left

1шт.

19

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Roll Solenoid

1шт.

20

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Raise Solenoid

1шт.

21

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

21

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Dump Solenoid

1шт.

22

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Lower Solenoid

1шт.

23

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

24

87695582

ELEC CONNECTOR,Female, 2 Pole

Pilot Enable Solenoid

1шт.

24

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

24

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

25

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.
