Запчасти Case 621G (55.101.030[01]) - FRONT CHASSIS HARNESS INSTALLATION, XT (55) - ELECTRICAL SYSTEMS

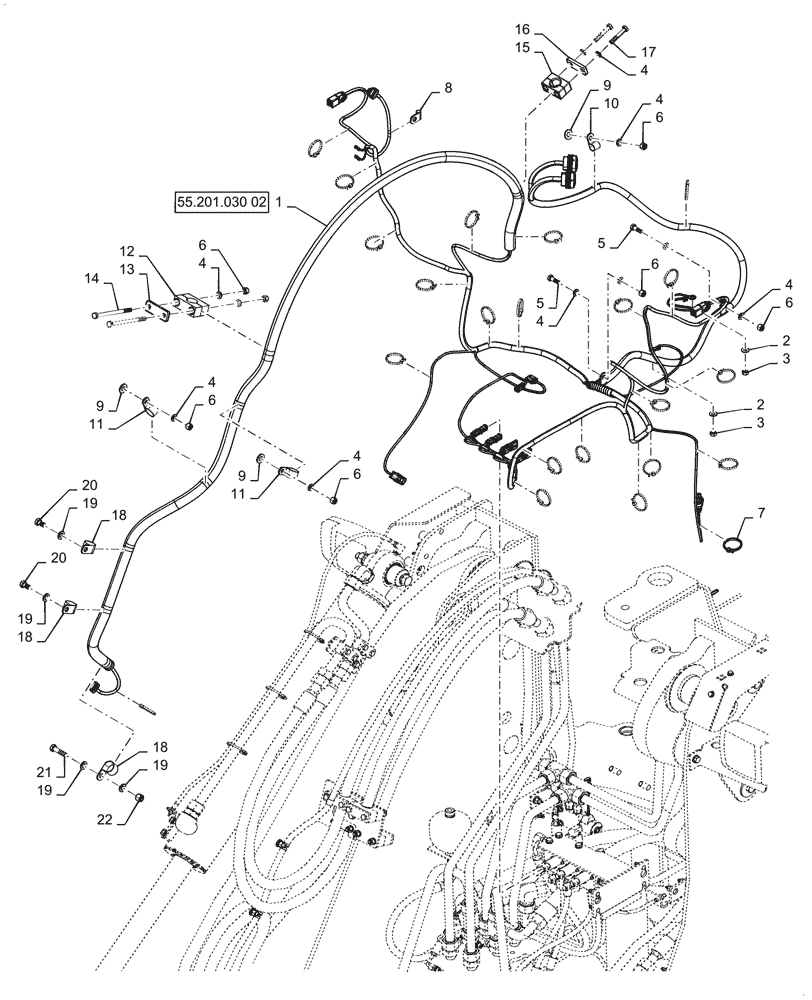

Схема запчастей Case 621G - (55.101.030[01]) - FRONT CHASSIS HARNESS INSTALLATION, XT (55) - ELECTRICAL SYSTEMS
55.201.030 02
10
4
4
21
4
19
1
5
4
3
14
19
6
6
11
2
18
4
15
19
9
4
3
8
16
9
13
20
20
6
7
4
18
2
18
11
22
9
6
6
19
6
17
5
12

Артикул

Название

Примечание

Количество

1

47855598

WIRE HARNESS

Front Chassis

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

3

253347A1

NUT,Hex, M10 x 1.5

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

22шт.

8

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

1шт.

9

895-15012

WASHER,M12 x 28 x 2.5

3шт.

10

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

11

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

2шт.

12

87452747

CLAMP,33.4mm ID

Tube Mounting

1шт.

13

8500858

PLATE

Clamp Cover

1шт.

14

814-10170

BOLT,Hex, M10 x 1.5 x 170mm, Cl 8.8

2шт.

15

372453A1

BLOCK

Tube Mounting

1шт.

16

367658A1

PLATE

Clamp Cover

1шт.

17

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

18

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

3шт.

19

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

20

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

21

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

Выбрано товаров: 22
