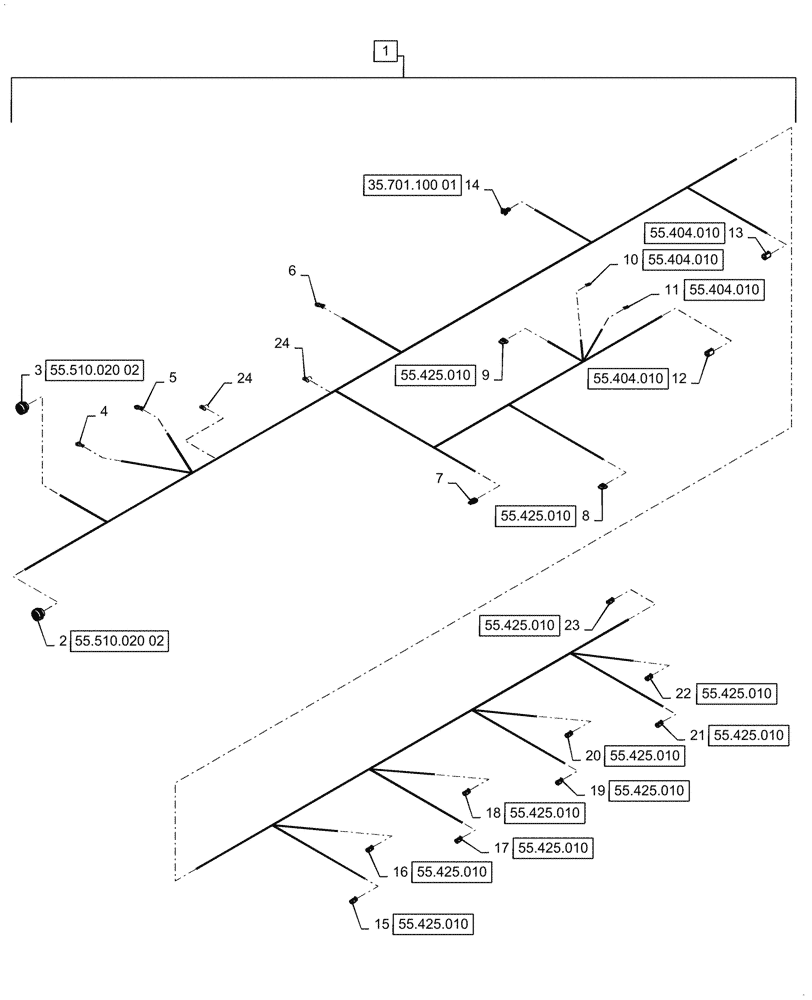

Запчасти Case 621G (55.101.010[02]) - FRONT CHASSIS HARNESS ASSEMBLY, Z-BAR / XR (55) - ELECTRICAL SYSTEMS

1

47853186

WIRE HARNESS

Front Chassis Harness Z-Bar, Incl 2 - 24

1шт.

1

47857660

WIRE HARNESS

Front Chassis Harness XR, Incl 2 - 24

1шт.

2

87704426

ELEC CONNECTOR

Front to Bottom, Standard

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Cavities, A,D,E,U-X

8шт.

2

87700175

ELEC CONNECTOR

Shell

1шт.

2

87697875

ELEC. TERMINAL PIN,Female, 2 - 3.6 mm2

Cavity B

1шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

12шт.

3

87700170

WIRE CONNECTOR

Front to Bottom, EH

1шт.

3

84068583

PLUG,12 - 16 Ga, White

Cavities O,R,U

3шт.

3

87700175

ELEC CONNECTOR

Shell

1шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

20шт.

4

84426126

TERMINAL

Chassis Ground

1шт.

5

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

6

84140737

TERMINAL CONNECTOR

Chassis Ground

1шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

Coupler Valve

1шт.

7

87692856

CABLE TERMINAL

Tin

1шт.

8

84403598

WIRE CONNECTOR

Bucket Angle Sensor

1шт.

8

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

6шт.

9

84403598

WIRE CONNECTOR

Boom Angle Sensor

1шт.

9

84403598

WIRE CONNECTOR

1шт.

10

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Ground

1шт.

11

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

Horn Power

1шт.

12

87694109

ELEC CONNECTOR

Front Combo Lamp, Right

1шт.

12

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

12

84391167

CAP

Shell

1шт.

12

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

12

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

5шт.

13

87694109

ELEC CONNECTOR

Front Combo Lamp, Left

1шт.

13

84068583

PLUG,12 - 16 Ga, White

Cavity 6

1шт.

13

84391167

CAP

Shell

1шт.

13

87694149

ELEC CONNECTOR

Wedge Lock

1шт.

13

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

5шт.

14

84607243

ELEC CONNECTOR,Female, 2 Cavities

Ride Control Solenoid

1шт.

14

87702681

TERMINAL

Tin

2шт.

15

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2, Right

1шт.

15

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

16

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 2, Left

1шт.

16

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1, Right

1шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Aux 1, Left

1шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

19

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Roll Solenoid

1шт.

19

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

20

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Raise Solenoid

1шт.

20

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

21

87695582

ELEC CONNECTOR,Female, 2 Pole

Bucket Dump Solenoid

1шт.

21

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

Boom Lower Solenoid

1шт.

22

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Pilot Enable Solenoid

1шт.

23

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

23

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

24

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.
