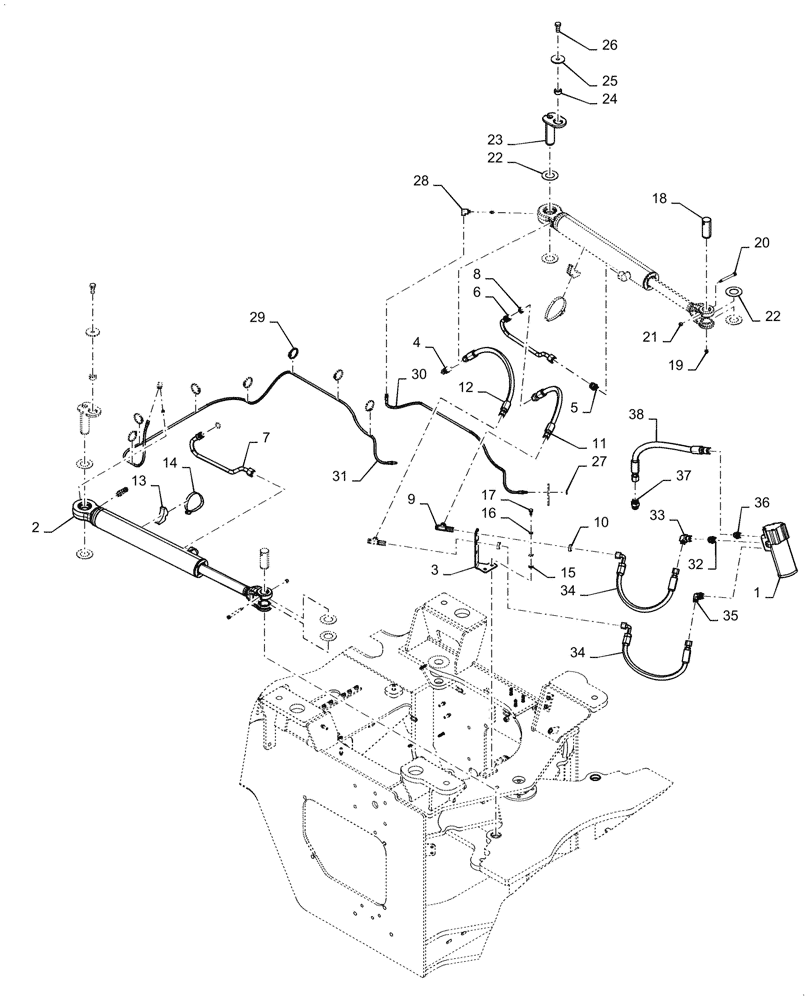

Запчасти Case 621G (41.216.010) - STEERING CYLINDER, MOUNTING (41) - STEERING

1

87307060

HYDRAULIC VALVE

1шт.

2

87452362

STEERING CYLINDER

2шт.

3

47728697

BRACKET

Bulkhead

1шт.

4

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

5

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

2шт.

6

87664498

TUBE,16 mm OD

1шт.

7

87664495

TUBE,16 mm OD

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

10

701-903

NUT,13/16" - 16

2шт.

11

8602589

FLEXIBLE HOSE

LH Rod

1шт.

12

8500460

FLEXIBLE HOSE

LH Base

1шт.

13

8500483

BLOCK

2шт.

14

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

18

87559561

PIN,40mm OD x 95.1mm L

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

20

87308853

HEX SOC SCREW,M8 x 96.4mm, Cl 12.9

2шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

22

8501088

WASHER,41mm ID x 76mm OD x 1.59mm Thk

8шт.

23

87351646

PIN,39.96mm OD x 141mm L

2шт.

24

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

2шт.

25

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

2шт.

26

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

27

F53473

LOCK NUT,1/8-27 NPSM

2шт.

28

328082A1

ELBOW

2шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

7шт.

30

L54694

HOSE,4.8mm ID x 1041mm L

Grease

1шт.

31

87559562

HOSE

Rear Steering Grease

1шт.

32

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

33

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

34

47870849

HOSE

Steering Cylinder

2шт.

35

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

36

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

37

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

1шт.

38

47725897

HOSE

Steering Return

1шт.
