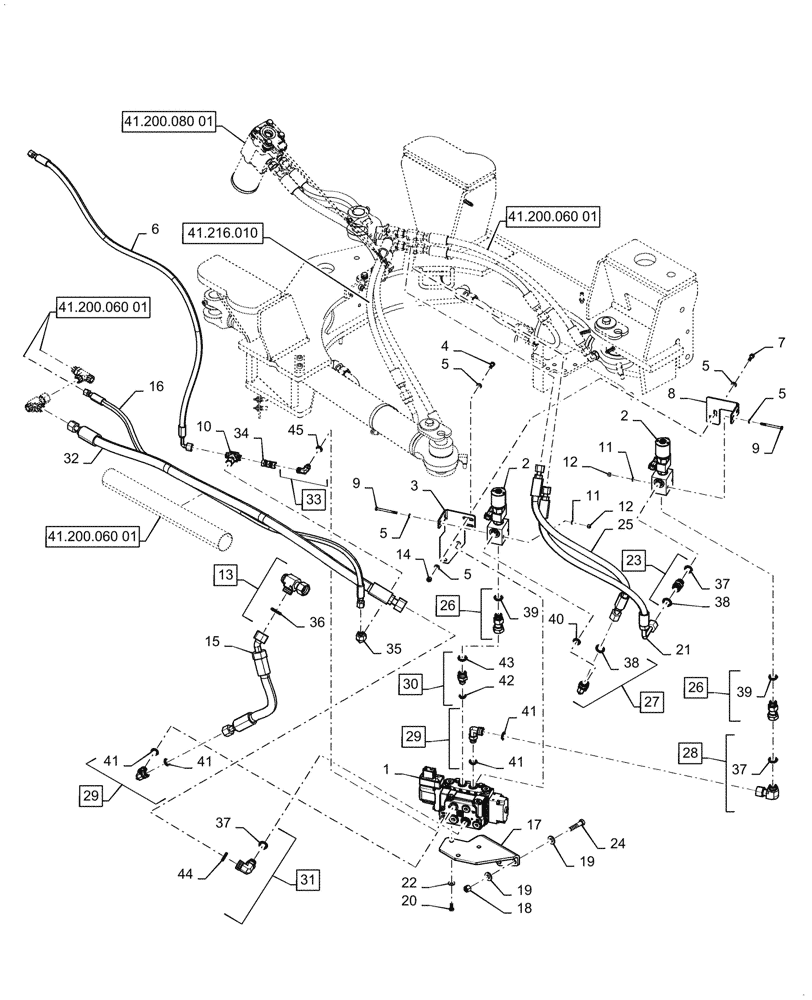

Запчасти Case 621G (41.200.060[02]) - VAR - 482913 - STANDARD , STEERING - EH W/ JOYSTICK (41) - STEERING

1

47908613

STEERING VALVE

1шт.

2

47908616

VALVE

Cutoff

2шт.

3

47908765

BRACKET

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

6

47933807

HOSE

Load Sense, Orbritol

1шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

8

47908767

BRACKET

1шт.

9

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

4шт.

10

47908251

VALVE

Hyd Shuttle Tee

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

832-10406

NUT,M6 x 1, Cl 8

4шт.

13

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 36

1шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

15

47933806

HOSE

to Tank

1шт.

16

47931989

HOSE

Steering LS

1шт.

17

47933046

BRACKET

1шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

21

47933804

HOSE

to Cylinder

1шт.

22

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

23

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 37, 38

1шт.

24

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

25

47931987

HOSE

to Cylinder

1шт.

26

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

Incl 39

2шт.

27

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 38, 40

1шт.

28

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 37

1шт.

29

700-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 41

2шт.

30

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 42, 43

1шт.

31

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 37, 44

1шт.

32

84162549

HOSE ASSY.

Suction Valve

1шт.

33

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl 45

1шт.

34

47749488

UNION

1шт.

35

86514670

ELBOW,90 Degree, 11/16"-16 ORFS

1шт.

36

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

37

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

38

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

39

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

40

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

41

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

43

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

44

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

45

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
