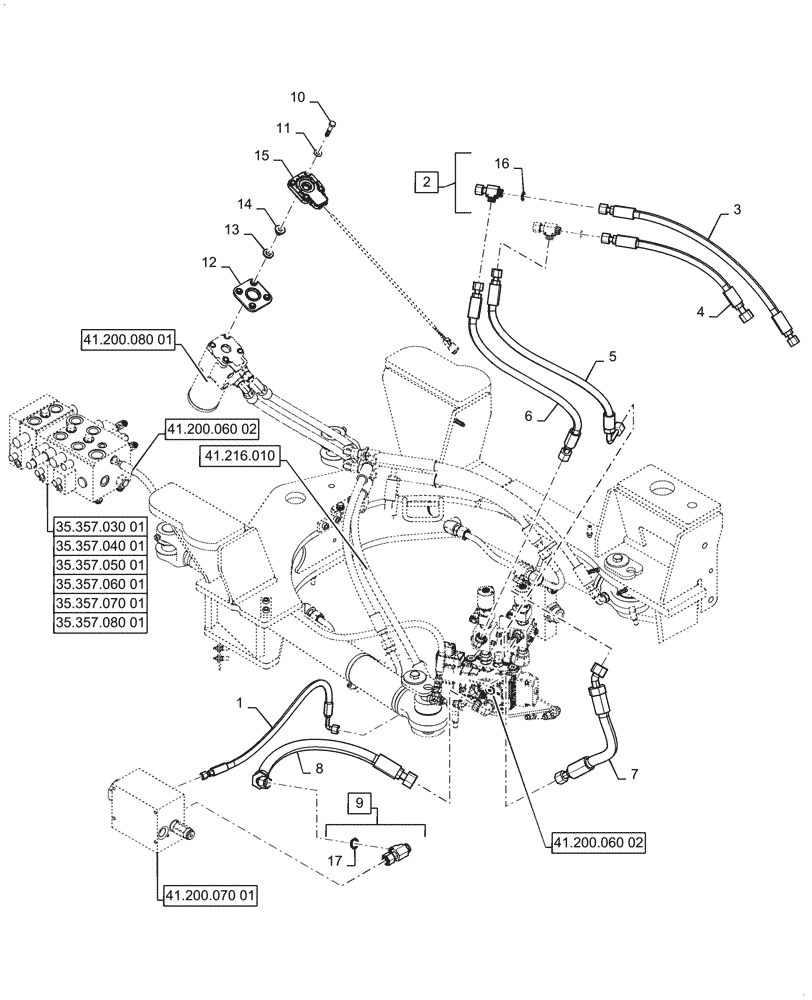

Запчасти Case 621G (41.200.060[01]) - VAR - 482913 - STANDARD, STEERING - EH W/ JOYSTICK (41) - STEERING

1

47931991

HOSE

Steering LS

1шт.

2

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 16

2шт.

3

87492561

HOSE ASSY.

Steering Cylinder

1шт.

4

87492558

HOSE ASSY.

Right Side Rod

1шт.

5

47933804

HOSE

to Cylinder RH

1шт.

6

47931987

HOSE

to Cylinder LH

1шт.

7

47933806

HOSE

to Tank

1шт.

8

47933805

HOSE

Suction Valve

1шт.

9

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 17

1шт.

10

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

84553550

ISOLATOR

1шт.

13

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

14

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

15

47786983

SENSOR

Steering Angle

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
