(41.200.050[01]) - VAR - 482930 - STANDARD, STEERING - W/ JOYSTICK

Запчасти Case 621G (41.200.050[01]) - VAR - 482930 - STANDARD, STEERING - W/ JOYSTICK (41) - STEERING

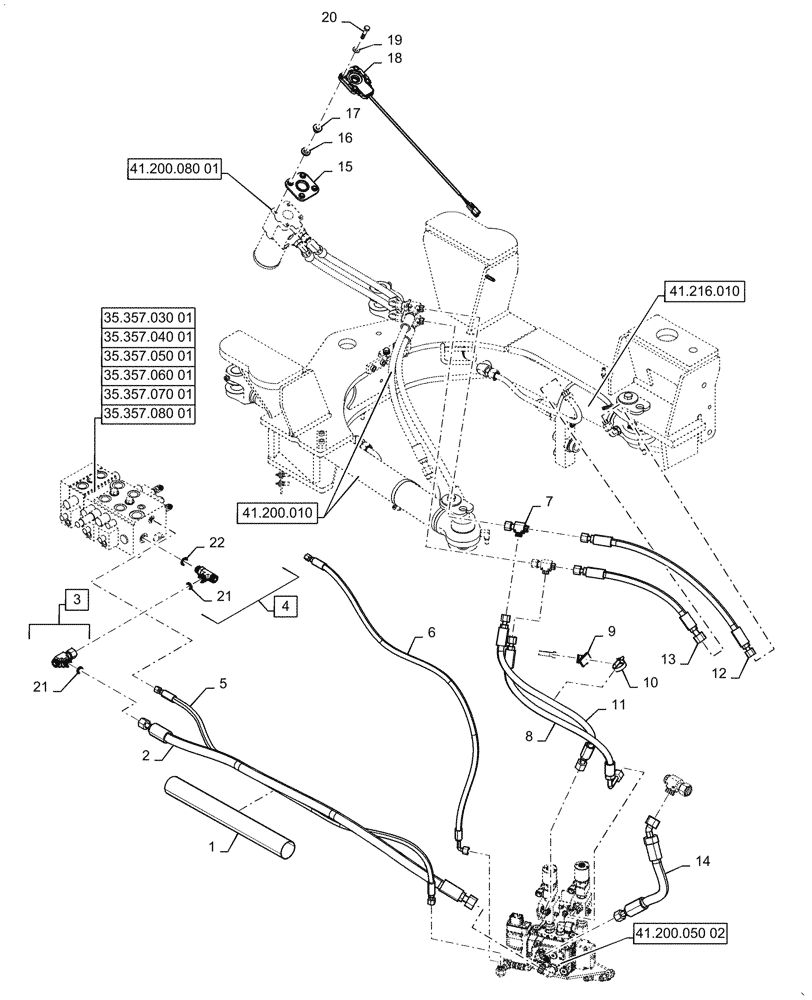

Схема запчастей Case 621G - (41.200.050[01]) - VAR - 482930 - STANDARD, STEERING - W/ JOYSTICK (41) - STEERING
9
7
8
11
12
14
21
21
3
18
4
6
17
19
15
1
16
13
5
2
10
22
41.200.050 02
41.200.010
35.357.040 01
35.357.070 01
35.357.080 01
35.357.050 01
20
35.357.060 01
41.216.010
41.200.080 01
35.357.030 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87559559

HOSE PROTECTION

60 X 554

1шт.

2

84162549

HOSE ASSY.

Suction Valve

1шт.

3

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 21

1шт.

4

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 21, 22

1шт.

5

47931989

HOSE

Steering LS

1шт.

6

47933807

HOSE

Load Sense, Orbitrol

1шт.

7

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

8

47933804

HOSE

to Cylinder

1шт.

9

84266053

TUBE SPACER

1шт.

10

84266050

CABLE TIE,384mm L, Polyamide

2шт.

11

47931987

HOSE

to Cylinder

1шт.

12

87492561

HOSE ASSY.

Steering Cylinder

1шт.

13

87492558

HOSE ASSY.

Right Side Rod

1шт.

14

47933806

HOSE

to Tank

1шт.

15

84553550

ISOLATOR

Steering Pump

1шт.

16

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

17

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

18

47786983

SENSOR

Steering Angle

1шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

20

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
