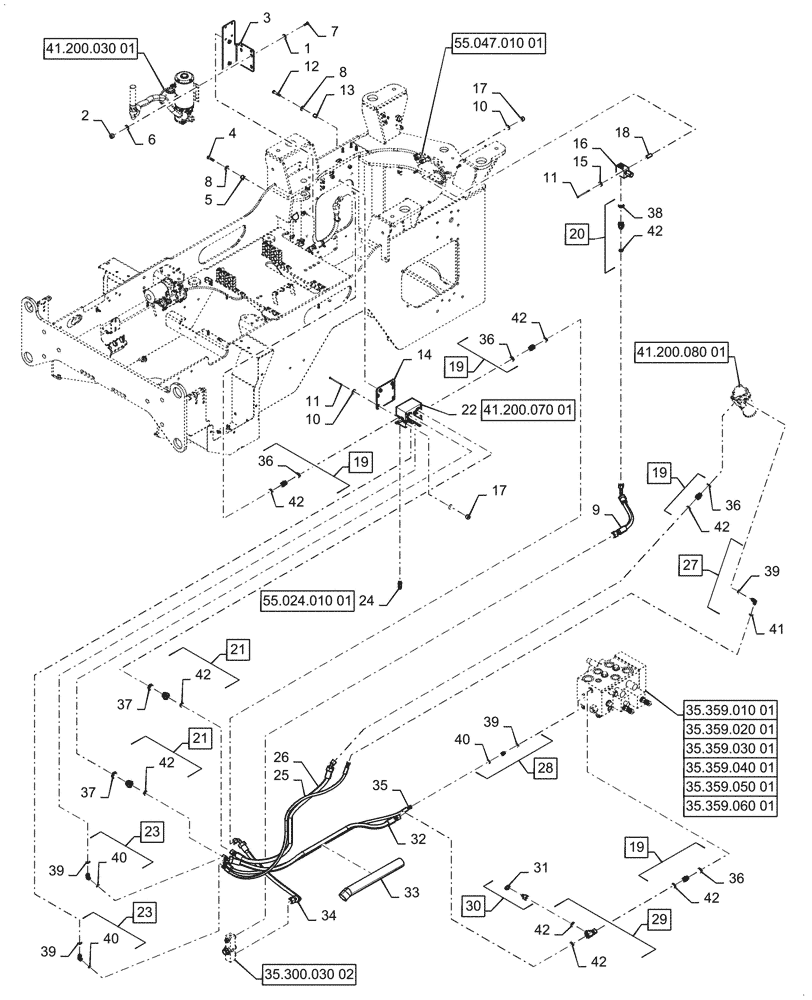

Запчасти Case 621G (41.200.030[02]) - VAR - 482913, 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/ JOYSTICK (41) - STEERING

1

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

3

84393503

BRACKET, SUPPORTING

Auxiliary Steering Pump

1шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

5

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

2шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

7

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

8

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

4шт.

9

87653923

HOSE

Relief to Filter

1шт.

10

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

10шт.

11

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

6шт.

12

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

13

84420571

SPACER,13.51mm ID x 19.05mm OD x 20mm L

2шт.

14

87653913

BRACKET

Auxiliary Steering Valve

1шт.

15

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

16

87427823

VALVE PRESSURE RELIE

Aux Steering

1шт.

17

832-10406

NUT,M6 x 1, Cl 8

6шт.

18

8500692

SPACER

2шт.

19

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 36, 42

4шт.

20

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 38, 42

1шт.

21

87035471

HYD CONNECTOR,1"-14 ORFS x M33 x 1.5 ORB

Incl 37, 42

2шт.

22

47792683

MANIFOLD

Auxiliary Steering

1шт.

23

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 39, 40

2шт.

24

84409605

SENSOR

Aux Steering

1шт.

25

87653919

HOSE

1шт.

26

84403089

HOSE ASSY.,15.88mm ID x 1200mm L

1шт.

27

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 39, 41

1шт.

28

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 39, 40

1шт.

29

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 42

1шт.

30

324201A1

PLUG

Incl 31

1шт.

31

H434163

DUST CAP

1шт.

32

87653915

HOSE

1шт.

33

87559559

HOSE PROTECTION

1шт.

34

87692443

HOSE ASSY.,15.88mm ID x 998mm L, SAE 100R1

1шт.

35

87653975

HOSE

Load Sense

1шт.

36

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

37

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

38

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

39

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

40

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

41

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

42

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

9шт.
