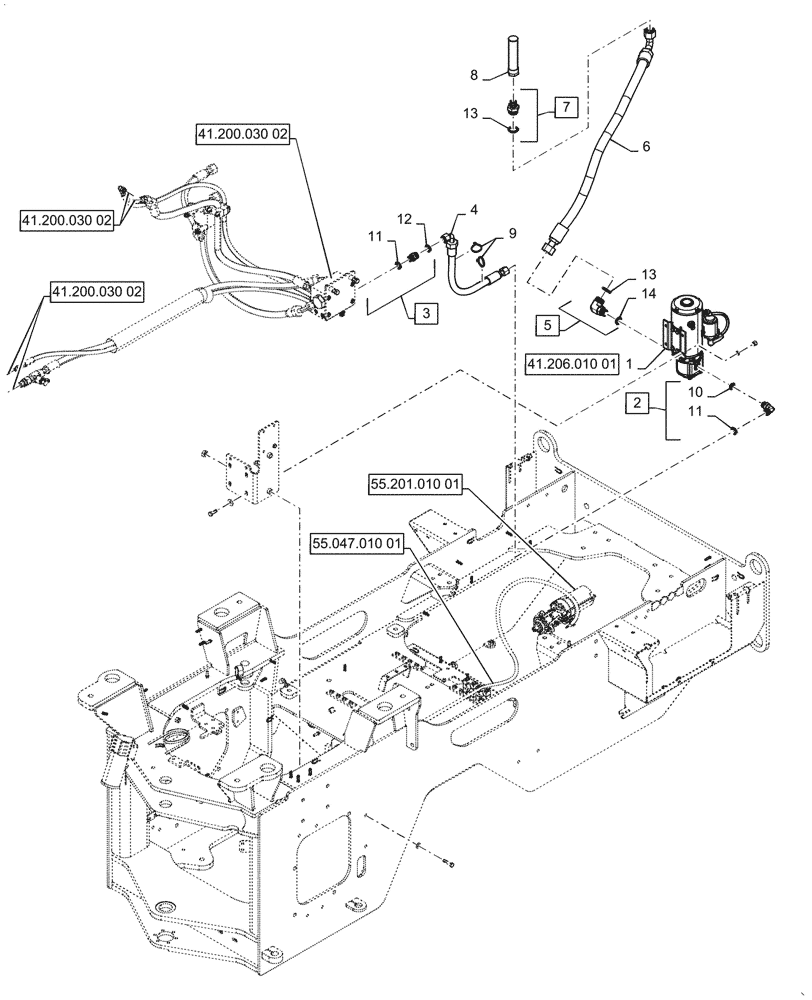

Запчасти Case 621G (41.200.030[01]) - VAR - 482913, 782442 - ELECTRIC SYSTEM CONTROL, STEERING - W/ JOYSTICK (41) - STEERING

1

84419597

MOTOR-PUMP

Aux Steering

1шт.

2

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 10, 11

1шт.

3

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 11, 12

4шт.

4

87653914

HOSE

Aux Pressure

1шт.

5

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 13, 14

1шт.

6

87653928

HOSE

Aux Suction

1шт.

7

87433494

HYD CONNECTOR

Incl 13

1шт.

8

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

8шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

14

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.
