(41.200.020[01]) - VAR - 782441 - STANDARD STEERING - W/O JOYSTICK

Запчасти Case 621G (41.200.020[01]) - VAR - 782441 - STANDARD STEERING - W/O JOYSTICK (41) - STEERING

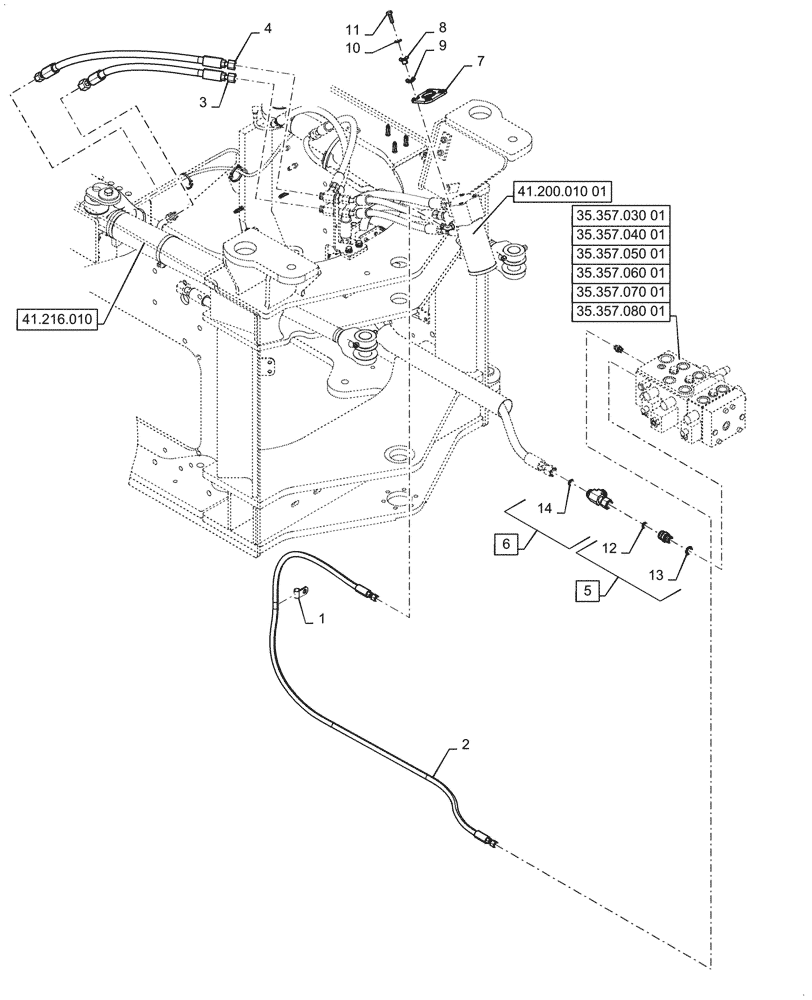

Схема запчастей Case 621G - (41.200.020[01]) - VAR - 782441 - STANDARD STEERING - W/O JOYSTICK (41) - STEERING
35.357.060 01
4
14
2
8
6
10
7
13
11
3
1
5
9
12
35.357.030 01
41.200.010 01
35.357.040 01
41.216.010
35.357.070 01
35.357.080 01
35.357.050 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

Insulation

1шт.

2

87651227

HOSE

Steering Load Sense

1шт.

3

8602590

FLEXIBLE HOSE

RH Side Rod

1шт.

4

87519795

HOSE ASSY.

RH Side Base

1шт.

5

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 12, 13

1шт.

6

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 14

1шт.

7

84553550

ISOLATOR

1шт.

8

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

9

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
