(41.106.010) - ARTICULATION JOINT

Запчасти Case 621G (41.106.010) - ARTICULATION JOINT (41) - STEERING

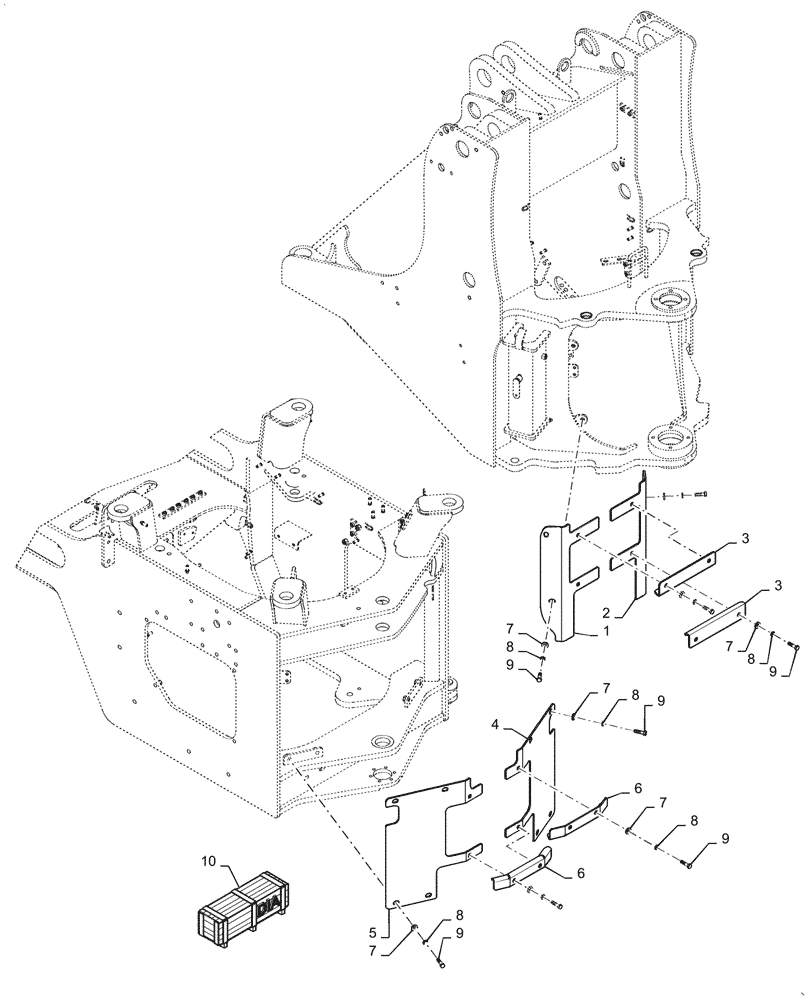

Схема запчастей Case 621G - (41.106.010) - ARTICULATION JOINT (41) - STEERING
7
7
7
3
9
8
3
8
9
2
8
9
5
9
7
8
7
4
8
6
9
6
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47836765

JOINT

Front Art Joint, LH

1шт.

2

47836761

JOINT

Front Art Joint, RH

1шт.

3

47400229

PROTECTION PLATE

Front Art Joint, CE

2шт.

4

47825042

JOINT

Rear Art Joint, LH,

1шт.

5

47825045

JOINT

Rear Art Joint, RH, CE Gray

1шт.

6

47400210

PROTECTION PLATE

Rear Art Joint, CE

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

20шт.

8

892-11012

LOCK WASHER,M12

20шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

20шт.

10

47844068

DIA KIT, Front & Articulation Guards, Incl 1, 2, 4 - 9 Inst Sheet 47844079

KIT

1шт.
