Запчасти Case 621G (39.105.010[01]) - LIFT ARM INSTALLATION, Z-BAR (39) - FRAMES AND BALLASTING

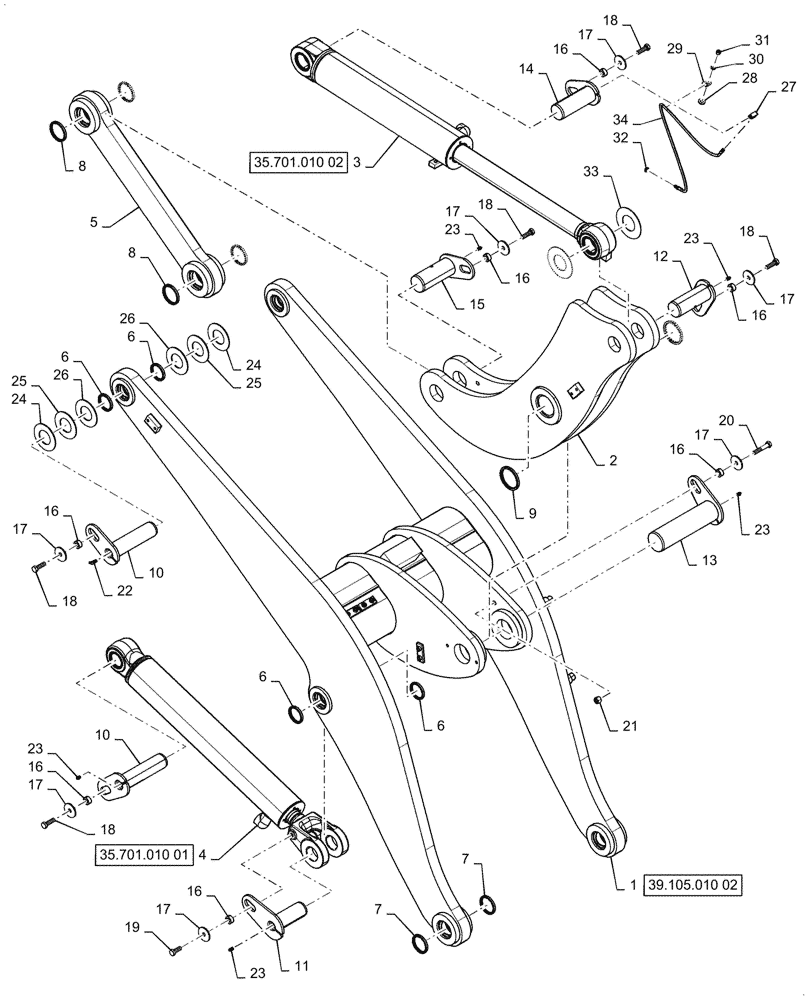

Схема запчастей Case 621G - (39.105.010[01]) - LIFT ARM INSTALLATION, Z-BAR (39) - FRAMES AND BALLASTING
23
11
4
9
18
6
7
28
26
26
30
34
12
7
17
23
27
6
22
2
24
33
18
17
23
17
17
29
14
17
15
16
10
5
16
17
16
18
3
10
16
31
23
1
24
21
25
8
17
19
16
23
6
16
13
25
16
32
18
39.105.010 02
35.701.010 02
35.701.010 01
8
6
18
20

Артикул

Название

Примечание

Количество

1

47725304

LIFT ARM

Case, Power Tan

1шт.

1

47725307

LIFT ARM

NH, Bright Yellow

1шт.

2

47725308

BELLCRANK

1шт.

3

87366689

CYLINDER ASSY.,Double Acting, 76.2mm Rod, 619.7mm Stroke

1шт.

4

87577650

LIFT CYLINDER,Double Acting, 63.5mm Rod, 787.6mm Stroke

2шт.

5

87395400

LINK ASSY.

Dump

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

8шт.

7

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

8

D95148

WIPER SEAL

4шт.

9

S92653

WIPER

2шт.

10

84315936

PIN

Lift Arm Pivot, Head, 63.5 x 244mm L

4шт.

11

87397333

PIN,63.5mm OD x 177.5mm L

Lift Arm Pivot, Rod

2шт.

12

87397326

PIN

Dump Link Pivot

1шт.

13

87397343

PIN ASSY.,88.9mm OD x 332.5mm L

Bellcrank Pivot

1шт.

14

87397344

PIN ASSY.,69.85mm OD x 192mm L

Tilt Cylinder Pivot

1шт.

15

87397345

PIN ASSY.

Dump Link Pivot

1шт.

16

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

17

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

18

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

20

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

21

832-10416

NUT,M16 x 2, Cl 8

1шт.

22

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

24

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

2шт.

25

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

2шт.

26

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

2шт.

27

328082A1

ELBOW

90°

1шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

29

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

32

F53473

LOCK NUT,1/8-27 NPSM

1шт.

33

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

2шт.

34

L54694

HOSE,4.8mm ID x 1041mm L

Grease Line

1шт.

Выбрано товаров: 35
