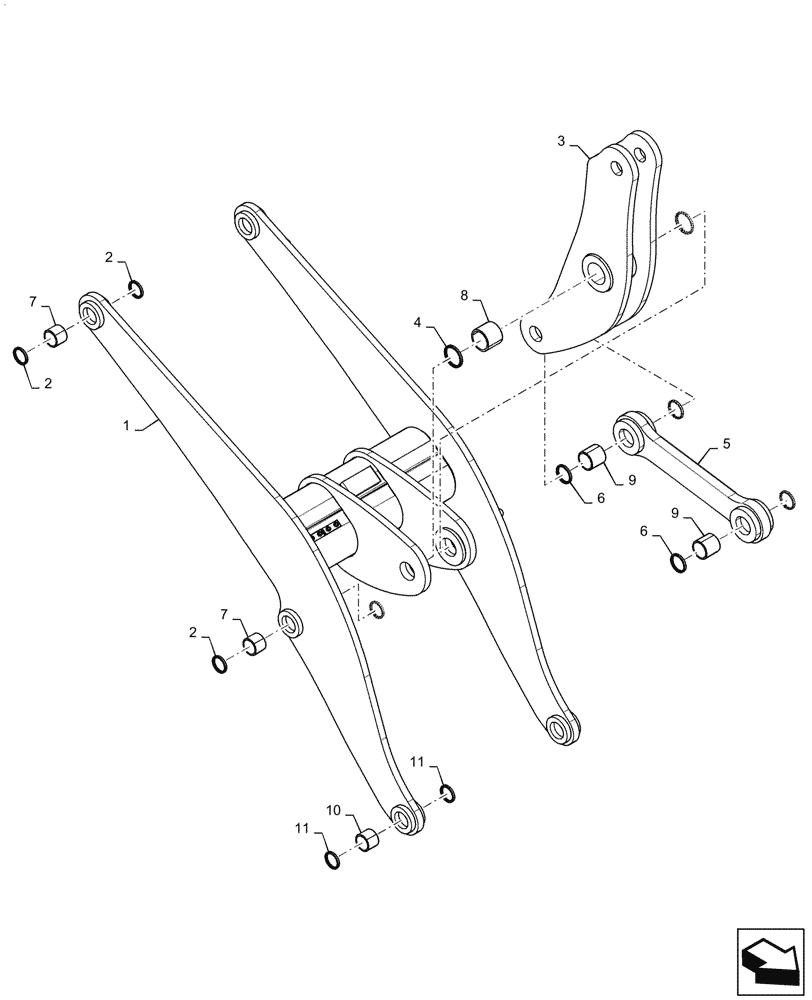

Запчасти Case 621G (39.102.010) - LIFT ARM COMPONENTS Z-BAR (39) - FRAMES AND BALLASTING

1

47725304

LIFT ARM

Assembly, Main, Z-bar

1шт.

2

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Main Lift Arm Assembly

8шт.

3

47725308

BELLCRANK

Assembly, Z-bar

1шт.

4

S92653

WIPER

Bellcrank Assembly

2шт.

5

87395400

LINK ASSY.

Bucket Dump

1шт.

6

D95148

WIPER SEAL

Bucket Dump Link

4шт.

7

87613439

BUSHING,63.8mm ID x 76.31mm OD x 58mm L

Lift Arm Assembly

4шт.

8

87613429

BUSHING,89.21mm ID x 104.88mm OD x 81.9mm L

Bellcrank Assembly Pivot

2шт.

9

87613430

BUSHING,76.52mm ID x 89.99mm OD x 79mm L

Bucket Dump Link

2шт.

10

87613444

BUSHING,70.16mm ID x 82.66mm OD x 78mm L

Lift Arm

2шт.

11

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Lift Arm

4шт.
