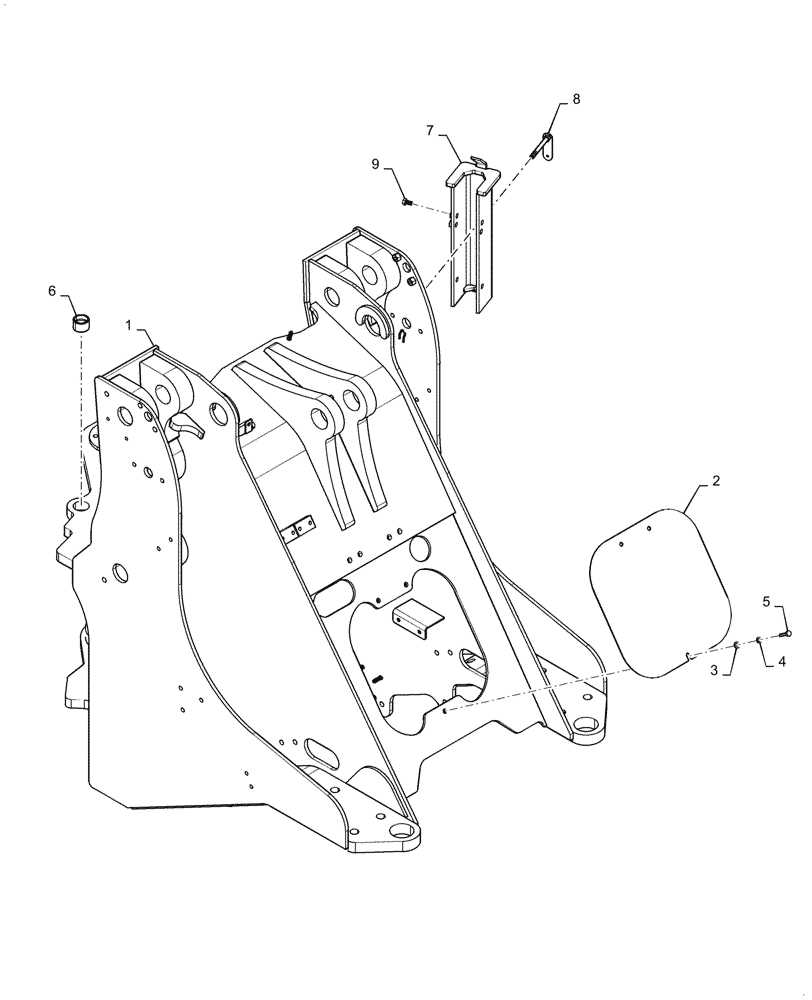

Запчасти Case 621G (39.100.130) - FRONT FRAME INSTALLATION, XT (39) - FRAMES AND BALLASTING

1

47906486

FRAME

1шт.

2

47404545

COVER

Valve

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

2шт.

7

47430519

CHANNEL

Linkage Support

1шт.

8

406390A1

HANDLE

W/ Linkage Channel

1шт.

9

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.
