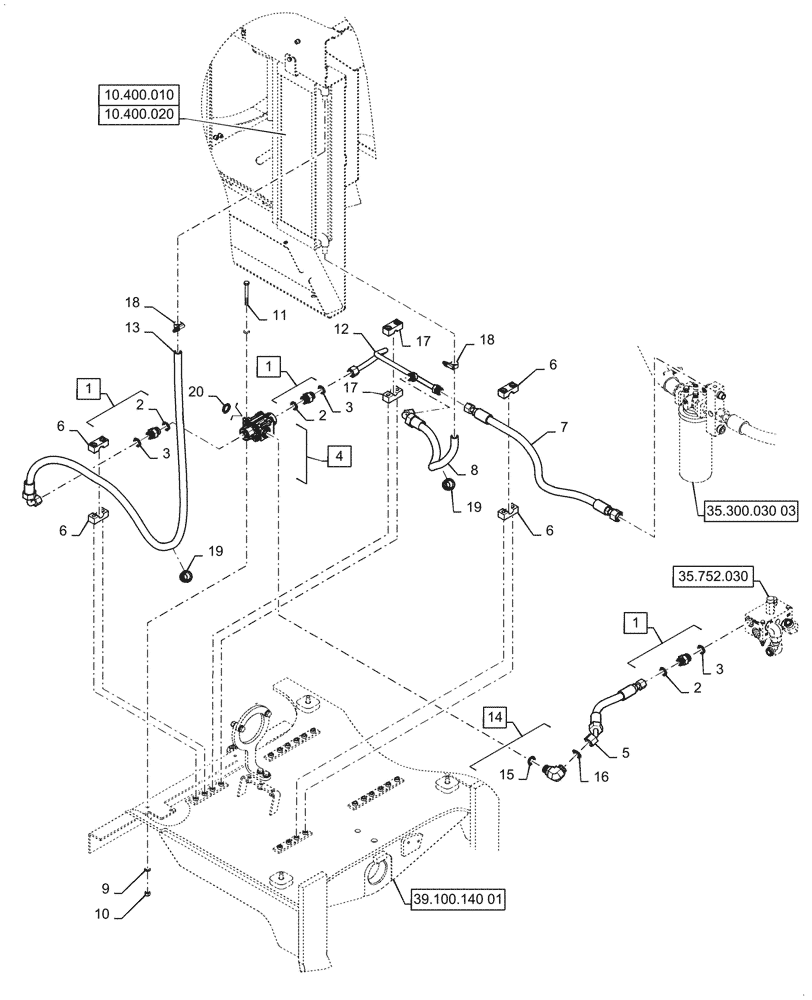

Запчасти Case 621G (35.752.020) - THERMAL BYPASS VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 2, 3

3шт.

2

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

4

87326981

BY-PASS VALVE

Incl 20

1шт.

5

87658721

HOSE ASSY.

Fan to Bypass, 387mm Lg

1шт.

6

367489A1

BLOCK

Mounting

2шт.

7

87577168

HYDRAULIC HOSE,15.88mm ID x 1037.0mm

Junction to Filter

1шт.

8

87658722

HOSE ASSY.

Cooler to Junction, 700mm Lg

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

12

87658720

TUBE,0.625" OD

Thermal Bypass

1шт.

13

87362185

HOSE ASSY.

Bypass to Cooler, 1936mm Lg

1шт.

14

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 15, 16

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

17

8500210

CLAMP

Tube Mounting

1шт.

18

328186A1

HOSE CLAMP

Constant Torque

2шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

2шт.

20

87328377

REPAIR KIT

Incl in 4, Contains, Thermal Element Assy and Seals

1шт.
