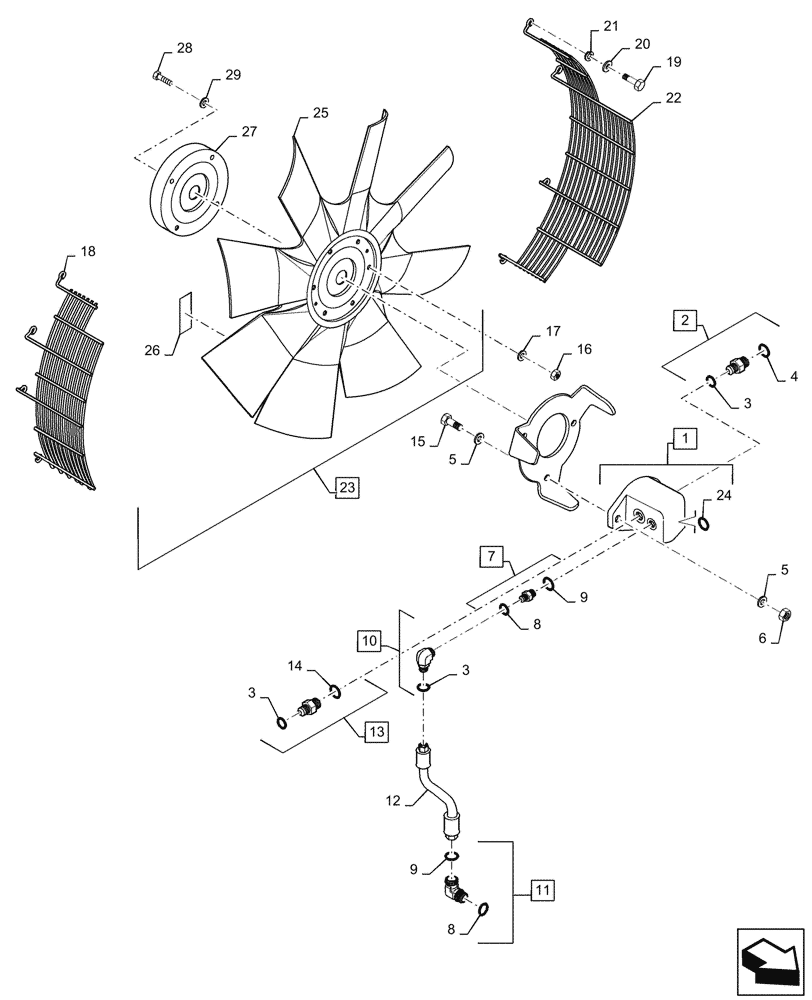

Запчасти Case 621G (35.752.010[01]) - FAN DRIVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

47883009

MOTOR-PUMP

Reversible Fan, Incl 24

1шт.

2

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 3, 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

7

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 8, 9

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

10

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 3

1шт.

11

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 8, 9

1шт.

12

8500183

FLEXIBLE HOSE

Drain, 342mm Lg

1шт.

13

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 3, 14

1шт.

14

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

16

232-2448

NUT,1/2"-20, GC

1шт.

17

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

18

87347864

GUARD

Fan LH, Use 19 - 21 for Installation

1шт.

19

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

20

892-11008

LOCK WASHER,8mm ID

8шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

22

87347865

GUARD

Fan RH, Use 19 - 21 for Installation

1шт.

23

87700025

FAN,8 Blades, 711.2mm OD

Assy, Incl 25 - 29

1шт.

24

47910747

SEAL KIT

Fan Drive, Incl In 1

1шт.

25

8602420

FAN

Blade, 32", 8 Blades

1шт.

26

8602953

DECAL

Label, "Engine Side"

1шт.

27

87700023

HUB

Fan

1шт.

28

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

29

8602955

WASHER

13/32" ID x 13/16" OD x .051" Thk

4шт.
