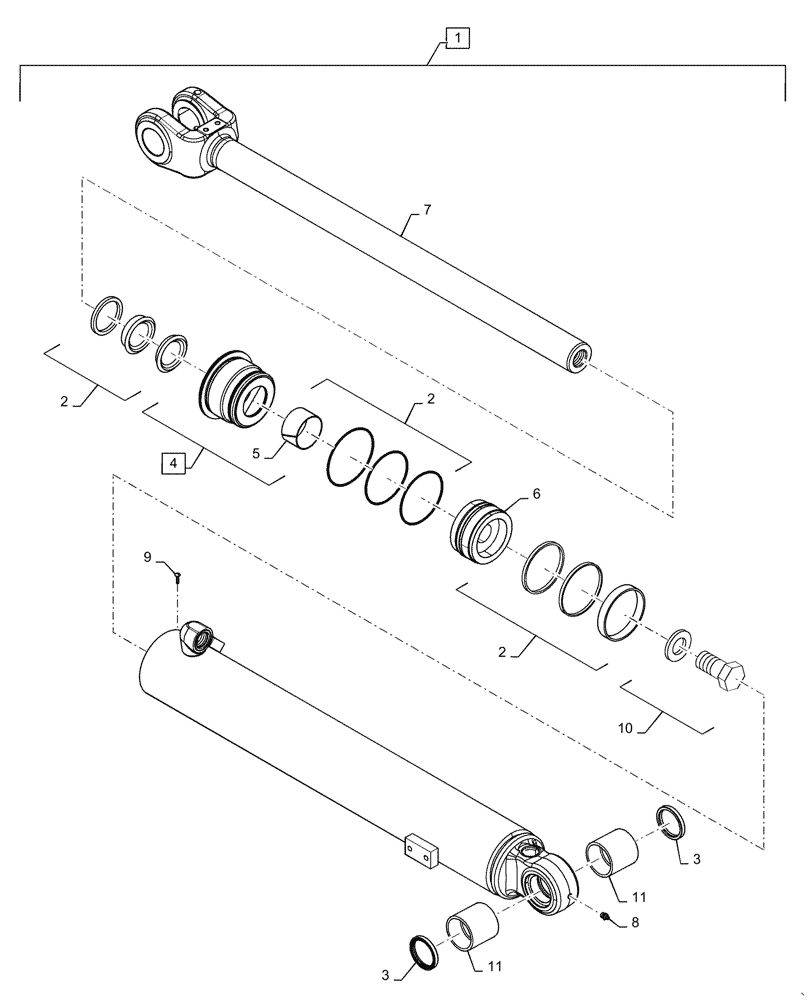

Запчасти Case 621G (35.740.010) - TILT CYLINDER ASSEMBLY, XT/TC (35) - HYDRAULIC SYSTEMS

1

87442555

BUCKET CYLINDER,Double Acting, 63.5mm Rod, 819.9mm Stroke

XT Tilt; 114 ID x 819.9mm Strk; Incl 2 - 11

1шт.

1

87442555R

REMAN-HYD CYLINDER

1шт.

1

87442555C

CORE-HYD CYLINDER

Return Number

1шт.

2

360982A1

SEAL KIT

Seals, XT Bucket Cylinder

1шт.

3

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

Dust Pin Seal

2шт.

4

336379A1

GLAND

Cylinder; Incl 5

1шт.

5

336041A1

BUSHING

Bearing

1шт.

6

341971A1

PISTON

Assy

1шт.

7

87442559

ROD ASSY.

63.5mm dia

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

10

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl Washer

1шт.

11

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

2шт.
