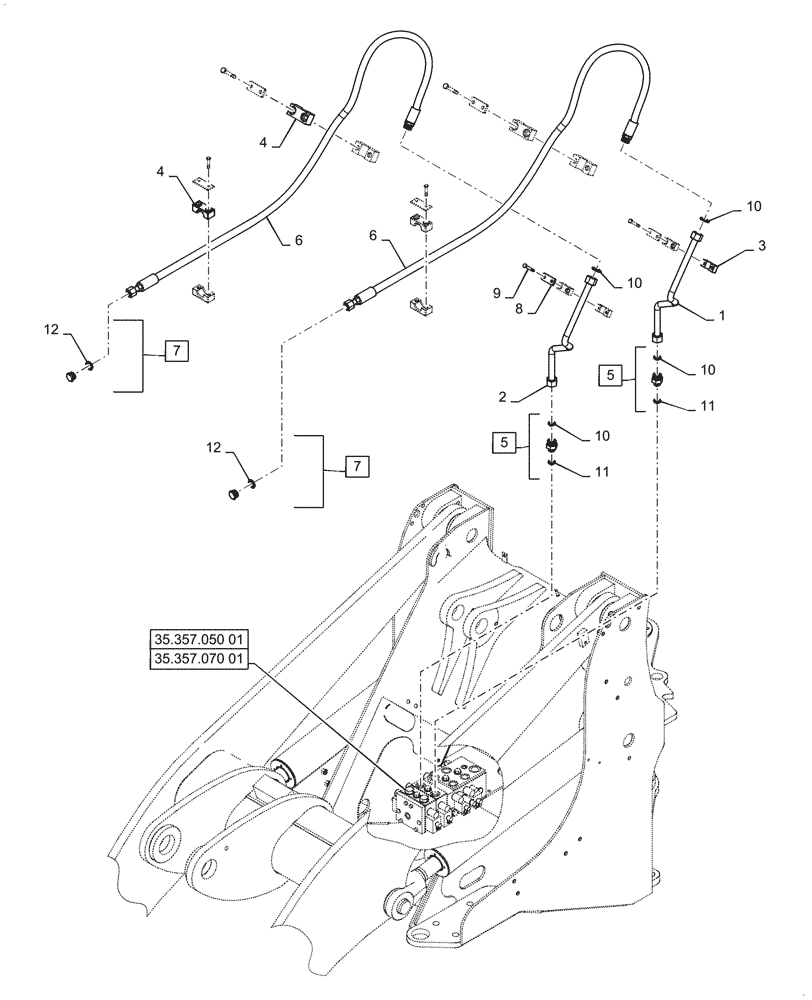

Запчасти Case 621G (35.701.080[01]) - VAR - 734053, 734054, 734055 - THIRD SPOOL AUXILIARY LINE INSTALLATION, XR (35) - HYDRAULIC SYSTEMS

1

86983688

HYD TUBE,25.40mm OD

LH

1шт.

2

86983689

HYD TUBE,25.40mm OD x 585mm, 178 mm L

RH

1шт.

3

367489A1

BLOCK

Tube Mounting

2шт.

4

372453A1

BLOCK

Tube Mounting

4шт.

5

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 10, 11

2шт.

6

437523A1

HOSE ASSY.

Third Spool, XR, 2143mm Lg

2шт.

7

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl 12

2шт.

8

367658A1

PLATE

Clamp Cover

2шт.

9

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

11

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

2шт.

12

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.
