(35.701.060) - COUPLER LINE INSTALLATION, XR LOADER ONLY

Запчасти Case 621G (35.701.060) - COUPLER LINE INSTALLATION, XR LOADER ONLY (35) - HYDRAULIC SYSTEMS

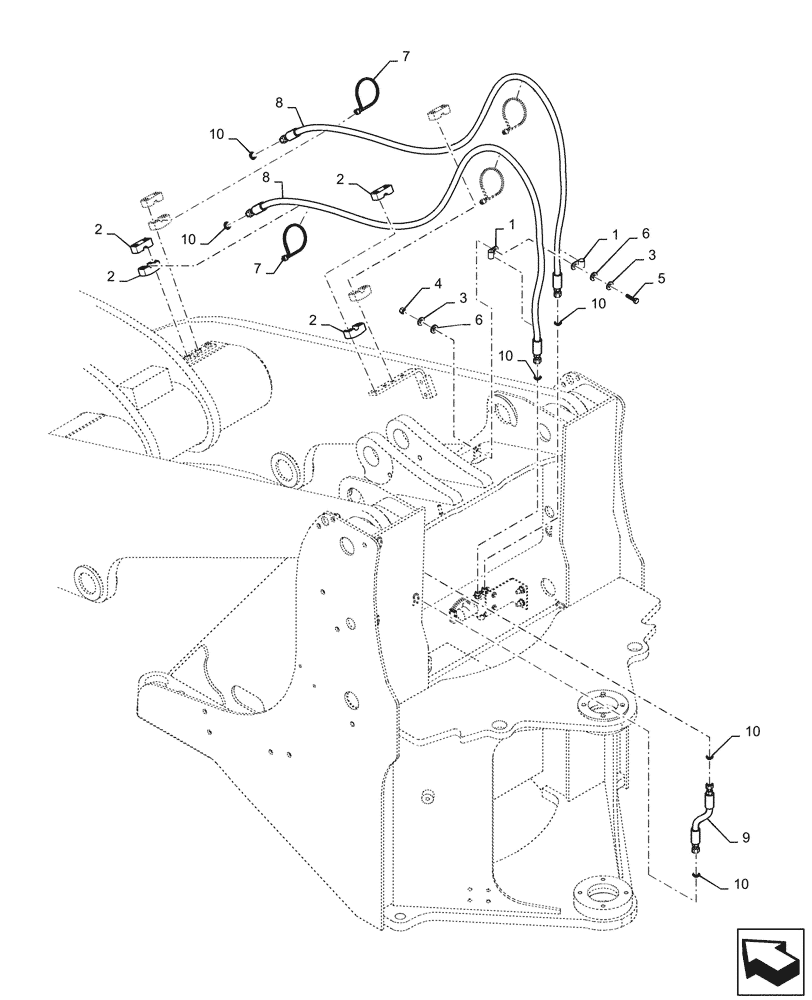

Схема запчастей Case 621G - (35.701.060) - COUPLER LINE INSTALLATION, XR LOADER ONLY (35) - HYDRAULIC SYSTEMS
2
8
8
10
2
7
6
2
3
9
10
7
2
1
6
10
5
10
3
10
4
1
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

2шт.

2

379374A1

BLOCK

Mounting

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

8

87405436

HOSE

XR Coupler; 2229mm ( 87-3/4 in )

2шт.

9

87403985

HOSE

Coupler Pressure; 308mm (12-1/8 in )

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.
