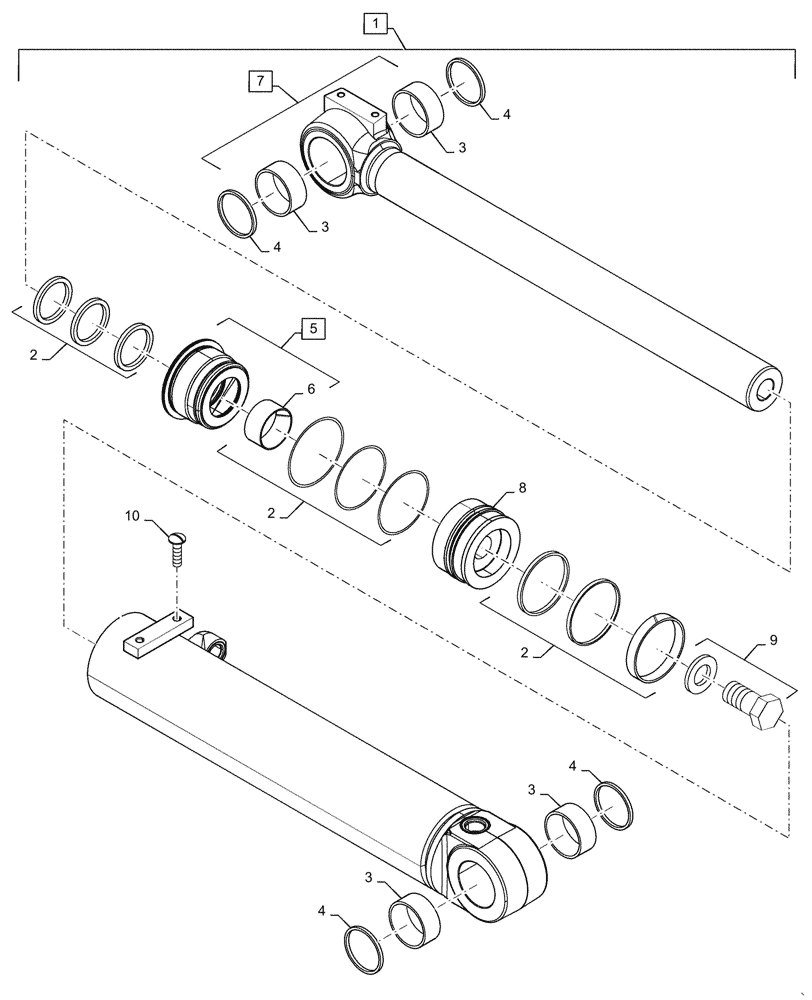

Запчасти Case 621G (35.701.020) - TILT CYLINDER ASSEMBLY, Z-BAR (35) - HYDRAULIC SYSTEMS

1

87366689

CYLINDER ASSY.,Double Acting, 76.2mm Rod, 619.7mm Stroke

Z-Bar Tilt; 114 ID x 529 mm strk; Bucket, Incl 2 - 10

1шт.

2

87434293

SEAL KIT

Seal Repair

1шт.

3

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

4шт.

4

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Pin Dust Seal

4шт.

5

339512A1

GLAND

Assy, Incl 6

1шт.

6

336042A1

BUSHING

Bearing; Dia. 76.20

1шт.

7

339520A1

ROD ASSY.

76.2 Dia, Incl 3

1шт.

8

339510A1

PISTON

Assy

1шт.

9

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl Washer

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
