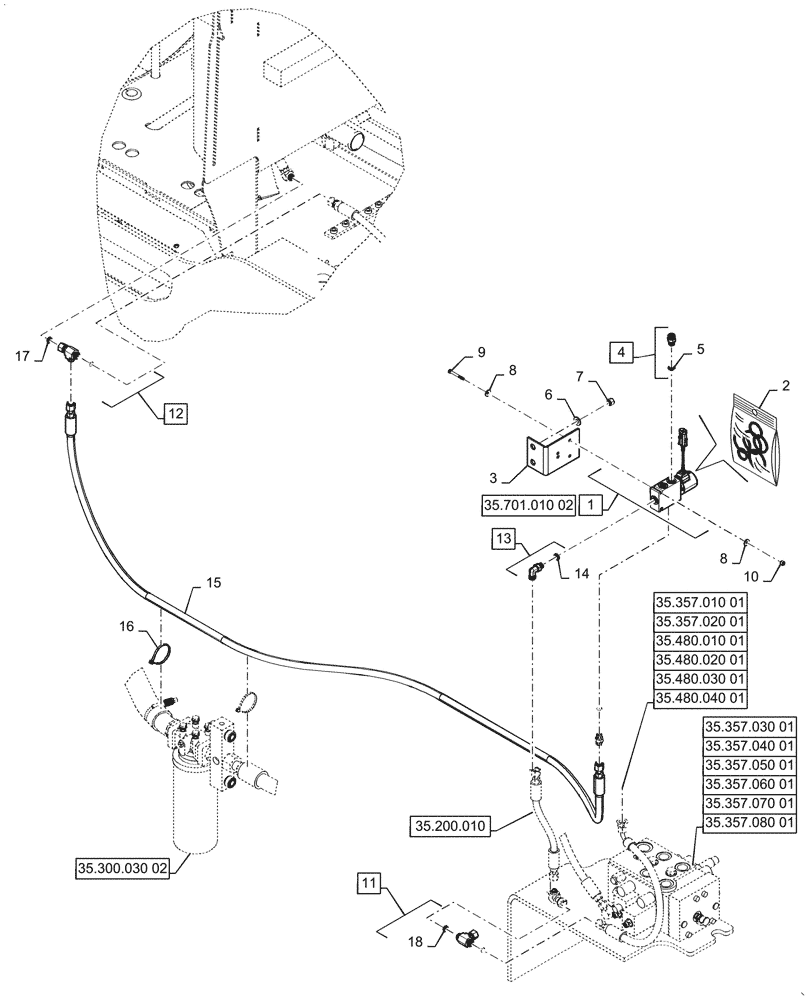

Запчасти Case 621G (35.701.010[01]) - VAR - 424248, 4249717, 424917, 482047, 734006, 734008, 734009 - COUPLING LOCKING INSTALLATION (35) - HYDRAULIC SYSTEMS

1

84139102

SOLENOID VALVE

Incl 2

1шт.

2

8605259

SEAL KIT

1шт.

3

87404018

BRACKET

Coupler Solenoid

1шт.

4

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 5

3шт.

5

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

9

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

Incl 18

1шт.

12

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 17

1шт.

13

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 14

1шт.

14

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

87581937

HYDRAULIC HOSE,9.52 mm ID x 2558.00 mm, SAE 100R1

Coupler Tank

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

17

70924048

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
