(35.480.020[01]) - VAR - 734053, 734054 - CONTROL VALVE LINE - 3 SPOOL, EH

Запчасти Case 621G (35.480.020[01]) - VAR - 734053, 734054 - CONTROL VALVE LINE - 3 SPOOL, EH (35) - HYDRAULIC SYSTEMS

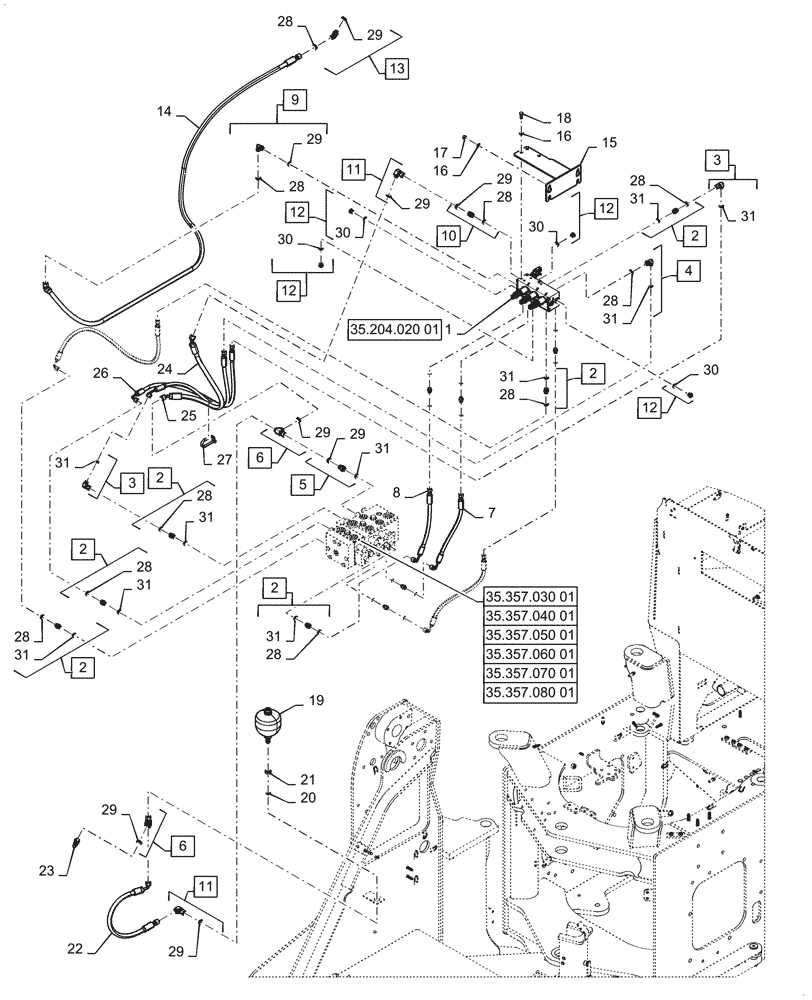

Схема запчастей Case 621G - (35.480.020[01]) - VAR - 734053, 734054 - CONTROL VALVE LINE - 3 SPOOL, EH (35) - HYDRAULIC SYSTEMS
29
31
4
25
15
10
17
9
2
26
31
19
22
28
13
21
31
29
6
28
14
28
27
29
28
29
31
31
31
2
18
12
12
2
7
12
30
31
28
28
29
16
28
11
2
3
20
29
23
30
28
30
12
6
2
2
30
16
5
3
28
31
11
31
8
31
35.357.040 01
35.357.070 01
28
35.357.080 01
35.357.050 01
35.357.060 01
35.204.020 01
35.357.030 01
29
1
29
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47646722

VALVE

Hyd, EH Control, 3-Function

1шт.

2

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 28, 31

11шт.

3

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 31

2шт.

4

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 28, 31

1шт.

5

391859A1

VALVE, CHECK

Incl 29 , 31

1шт.

6

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 29

2шт.

7

47659237

HOSE

LH Pilot Lift - Red

1шт.

8

47646862

HOSE

Pilot Pump - Green

1шт.

9

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 28, 29

1шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 28, 29

1шт.

11

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 29

2шт.

12

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 30

9шт.

13

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 28, 29

1шт.

14

47806824

HOSE

Pilot Tank

1шт.

15

47657976

BRACKET

EH Valve Mount

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

19

8501047

ACCUMULATOR

Pilot Supply

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

701-909

NUT,11/16" - 16

1шт.

22

87308338

HOSE ASSY.

Pilot Accumulator

1шт.

23

190119A1

COUPLING

Diagnostic

1шт.

24

47660285

HOSE

Pilot Pressure

1шт.

25

47867916

HOSE

RH Pilot Tilt - Orange

1шт.

26

47659233

HOSE

RH Pilot Lift - Yellow

1шт.

27

84266050

CABLE TIE,384mm L, Polyamide

1шт.

28

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

15шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

30

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

9шт.

31

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

15шт.
