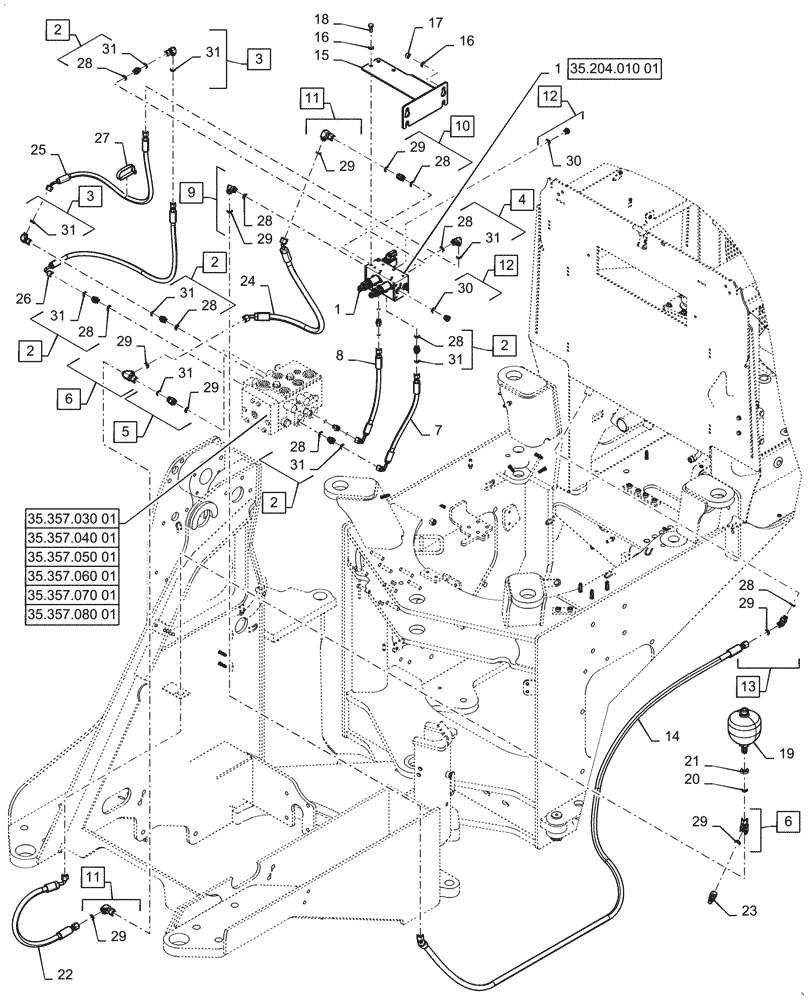

Запчасти Case 621G (35.480.010[01]) - VAR - 734051, 734052 - CONTROL VALVE LINE - 2 SPOOL, EH (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case 621G - (35.480.010[01]) - VAR - 734051, 734052 - CONTROL VALVE LINE - 2 SPOOL, EH (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5449680.png)
№
Артикул
Название
Примечание
Количество
1
47718795
VALVE
Hyd, EH Control, 2-Function
1шт.
2
700-153
HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB
Incl 28, 31
7шт.
3
701-329
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS
Incl 31
2шт.
4
700-378
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB
Incl 28, 31
1шт.
5
391859A1
VALVE, CHECK
Incl 28, 29
1шт.
6
701-422
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl 29
2шт.
7
47659237
HOSE
LH Pilot Lift - Red
1шт.
8
47646862
HOSE
Pilot Pump - Green
1шт.
9
700-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl 28, 29
1шт.
10
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl 28, 29
1шт.
11
701-319
ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS
Incl 29
2шт.
13
700-315
ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl 28, 29
1шт.
14
47806824
HOSE
Pilot Tank
1шт.
15
47657976
BRACKET
EH Valve Mount
1шт.
16
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
7шт.
17
832-10410
NUT,M10 x 1.5, Cl 8
4шт.
19
8501047
ACCUMULATOR
Pilot Supply
1шт.
20
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
21
701-909
NUT,11/16" - 16
1шт.
22
87308338
HOSE ASSY.
Pilot Accumulator
1шт.
23
190119A1
COUPLING
Diagnostic
1шт.
24
47660285
HOSE
Pilot Pressure
1шт.
25
47867916
HOSE
RH Pilot Tilt - Orange
1шт.
26
47659233
HOSE
RH Pilot Lift - Yellow
1шт.
27
84266050
CABLE TIE,384mm L, Polyamide
1шт.
28
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
11шт.
Выбрано товаров: 31
