(35.359.060[01]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, XT / TC

Запчасти Case 621G (35.359.060[01]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS

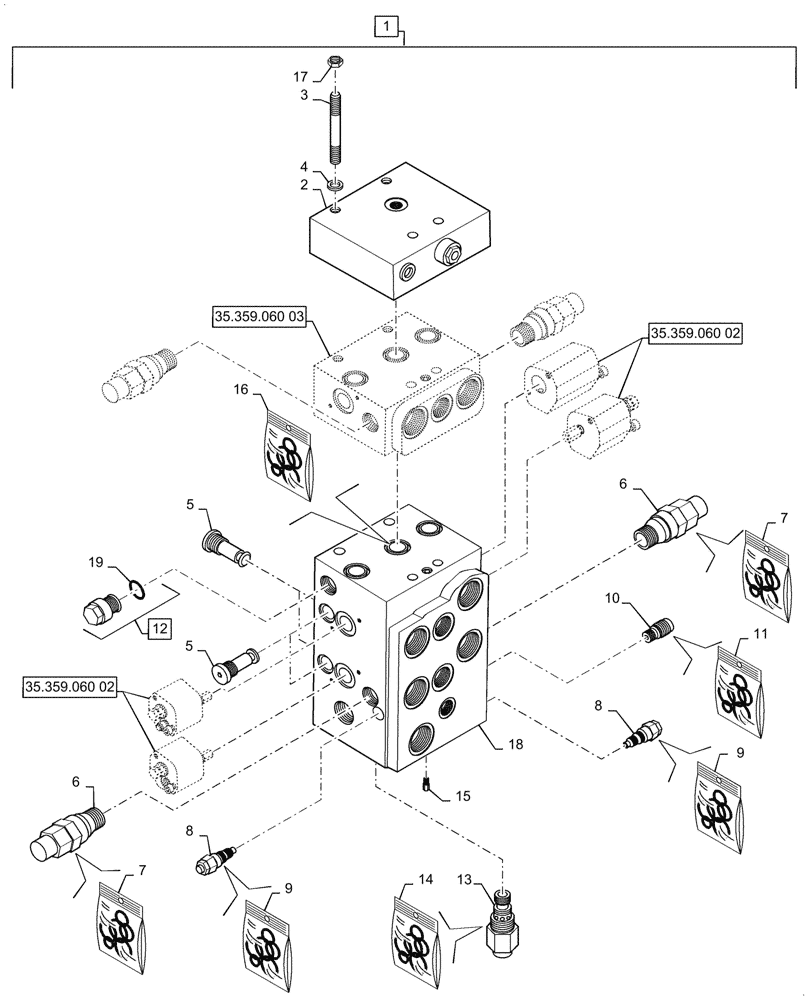

Схема запчастей Case 621G - (35.359.060[01]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, XT / TC (35) - HYDRAULIC SYSTEMS
35.359.060 02
1
9
19
13
12
7
2
7
5
3
6
5
9
8
15
10
18
16
17
6
14
8
4
11
35.359.060 03
35.359.060 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87680517

HYDRAULIC VALVE

4 Spool, Incl 2-19

1шт.

2

87311889

PLATE

Valve

1шт.

3

87311891

STUD

Four Spool Valve

4шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

5

47729052

VALVE

Loader Control

3шт.

6

47729054

VALVE

Anticavitation

6шт.

7

87692467

SEAL KIT

Anticavitation Valve

1шт.

8

8602925

VALVE PRESSURE RELIE

2шт.

9

87692469

SEAL KIT

2шт.

10

87613469

HYDRAULIC VALVE

Flow Limiting

1шт.

11

47728020

SEAL KIT

Flow Limiting

1шт.

12

87311965

INSERT

Pilot Pressure

1шт.

13

8602913

HYDRAULIC VALVE

Flow Limiting

1шт.

14

47728959

SEAL KIT

Flow Limiting

1шт.

15

87692773

CHECK VALVE

Loader Control

1шт.

16

8604575

SEAL KIT

For Main Housing, Available in Kit Only

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

18

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

O-ring (23.47 x 2.62) Incl in 12

1шт.
