(35.359.050[03]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR

Запчасти Case 621G (35.359.050[03]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

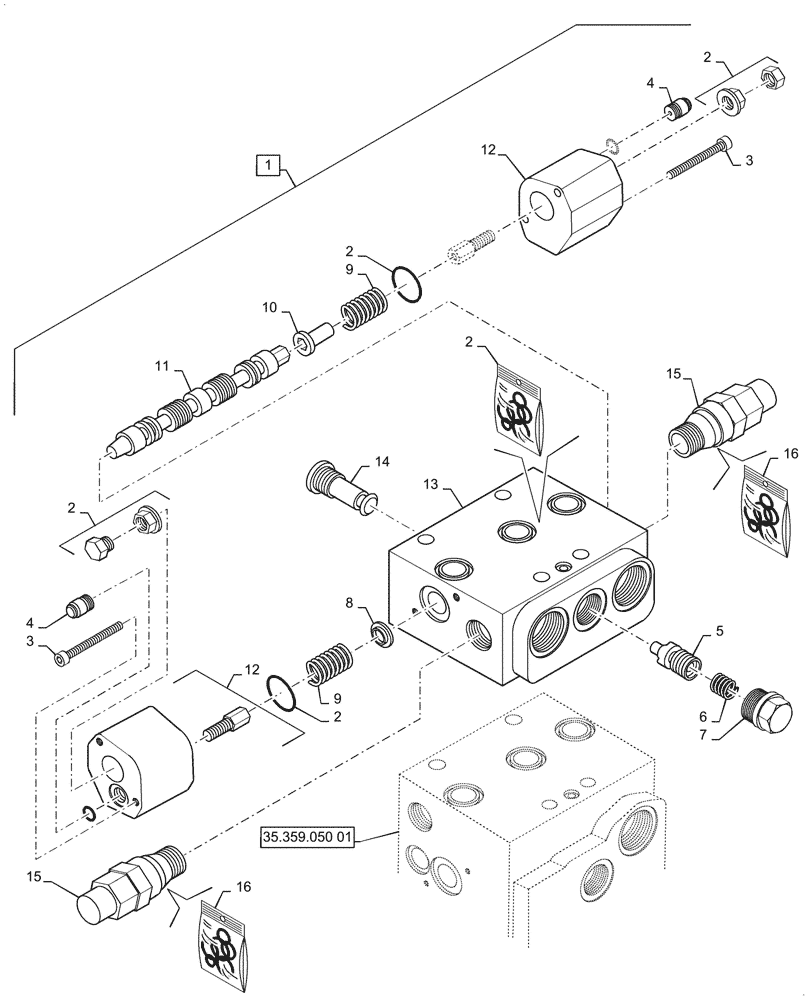

Схема запчастей Case 621G - (35.359.050[03]) - VAR - 734055 - CONTROL VALVE ASSY - 4 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.050 01
1
12
5
16
14
15
3
2
7
2
6
4
2
13
9
4
16
9
8
11
2
3
10
15
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87307984

HYDRAULIC VALVE

Four Spool, Incl 2 - 16

1шт.

2

47729051

SEAL KIT

For Housing

1шт.

3

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

4шт.

4

8604578

CHECK VALVE

Throttle

2шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

NSS

NOT SOLD SEPARAT

Compression Spring

1шт.

7

8604581

SCREW,Lock, M6

1шт.

8

NSS

NOT SOLD SEPARAT

Spring Retainer

1шт.

9

NSS

NOT SOLD SEPARAT

Compression Spring

2шт.

10

NSS

NOT SOLD SEPARAT

Retainer

1шт.

11

NSS

NOT SOLD SEPARAT

Spool

1шт.

12

8604576

COVER

M6 Valve, Option (B3)

2шт.

13

NSS

NOT SOLD SEPARAT

Block, M6, Spool

1шт.

14

8604567

VALVE, CHECK

Loder Control

1шт.

15

47729054

VALVE

Anticavitation

2шт.

16

47728949

SEAL KIT

Anticavitation Valve

2шт.
