Запчасти Case 621G (35.359.010[02]) - VAR - 734051, 734052 - CONTROL VALVE ASSY - 2 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS

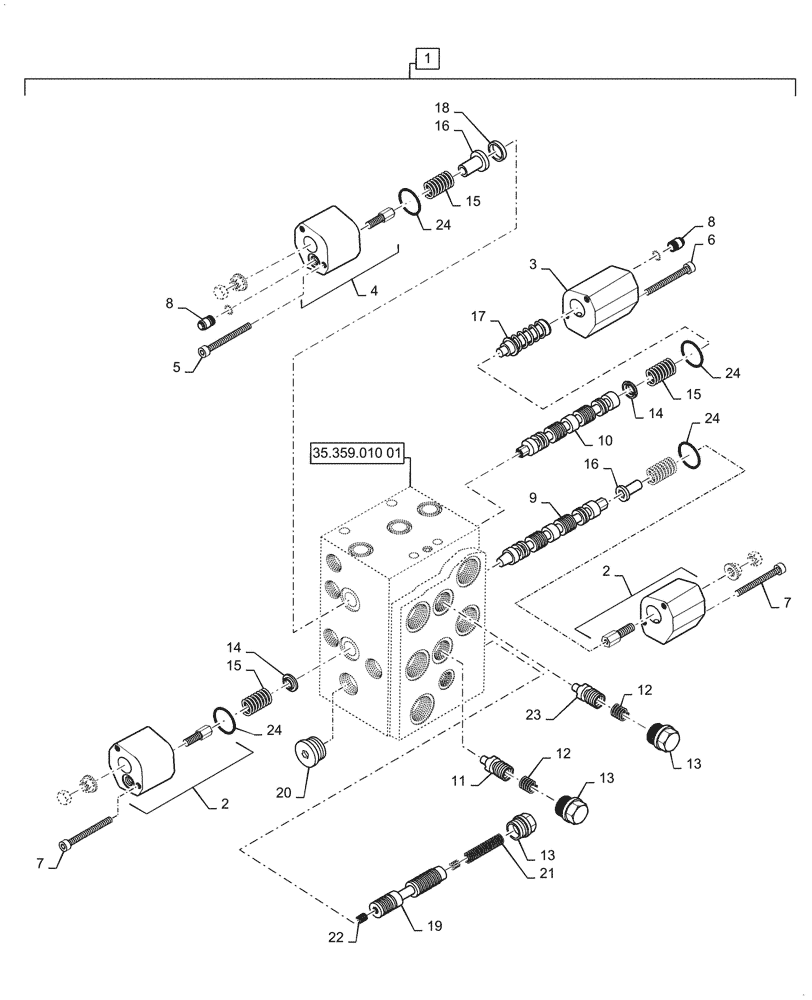

Схема запчастей Case 621G - (35.359.010[02]) - VAR - 734051, 734052 - CONTROL VALVE ASSY - 2 SPOOL, Z-BAR / XR / LR (35) - HYDRAULIC SYSTEMS
35.359.010 01
21
10
15
3
24
12
12
20
14
8
17
4
13
15
1
13
19
18
13
23
7
14
16
2
9
8
2
24
22
11
7
15
6
5
16
24
24

Артикул

Название

Примечание

Количество

1

87307982

HYDRAULIC VALVE

Two Spool, Incl 2 - 24

1шт.

2

8604576

COVER

M6 Valve, Bucket (A1, B1)

2шт.

3

87311972

COVER

M6 Valve, Lift (B2)

1шт.

4

8605577

COVER

M6 Valve, Lift (A2)

1шт.

5

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

6

87311974

HEX SOC SCREW,M5 x 85mm, Cl 10.9

2шт.

7

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

4шт.

8

8604578

CHECK VALVE

Throttle

2шт.

9

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

2шт.

13

8604581

SCREW,Lock, M6

3шт.

14

NSS

NOT SOLD SEPARAT

Spring Retainer, Incl in 1

2шт.

15

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

4шт.

16

NSS

NOT SOLD SEPARAT

Retanier, Incl in 1

2шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

20

87311988

PLUG

M22 x 1.5

1шт.

21

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Jet, Incl in 1

2шт.

23

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

24

8604575

SEAL KIT

For Main Housing

1шт.

Выбрано товаров: 24
