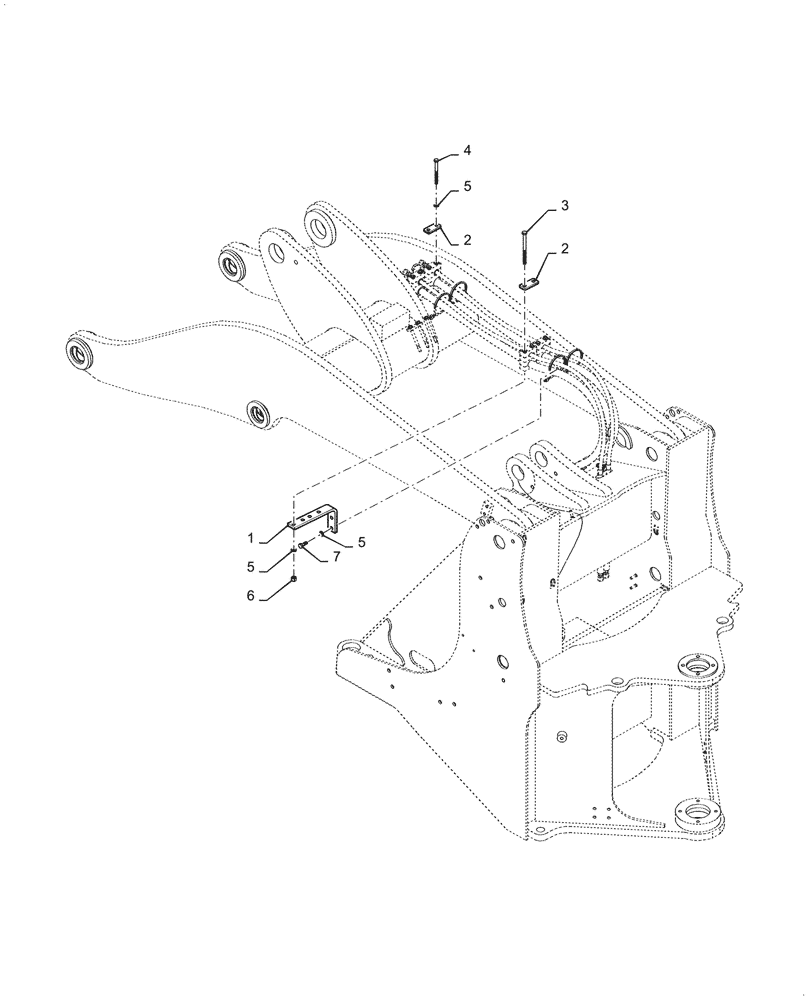

Запчасти Case 621G (35.200.020) - BLOCK, FASTENER 4 BLOCK (35) - HYDRAULIC SYSTEMS

1

373040A2

BRACKET

Hose Clamp

1шт.

2

367658A1

PLATE

Clamp Cover

4шт.

3

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

4шт.

4

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.
