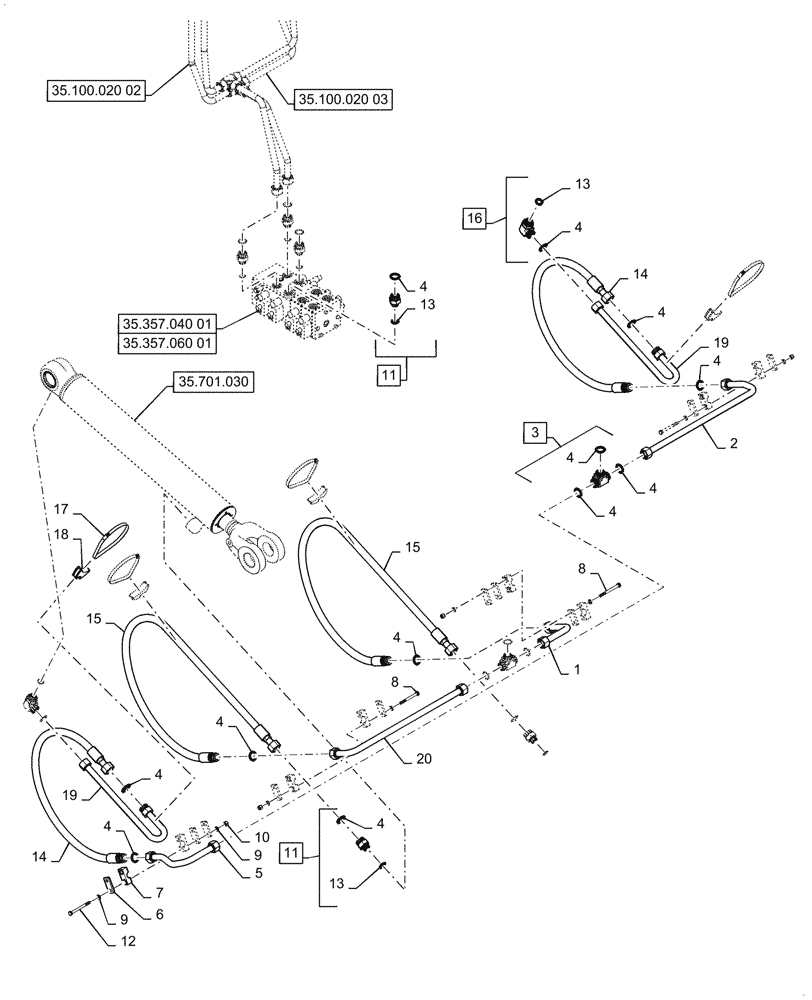

Запчасти Case 621G (35.100.020[01]) - LIFT CYLINDER LINES AND FITTINGS, XT/TC (35) - HYDRAULIC SYSTEMS

1

8606100

TUBE,25.40mm OD x 110, 659mm L

Lift, Rod End

1шт.

2

8606092

TUBE,22mm ID x 25mm OD x 659mm L

Lift, Head End

1шт.

3

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl 4

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

20шт.

5

47850184

TUBE

Lift, Head End, 25.4mm OD

1шт.

6

367658A1

PLATE

Clamp Cover

10шт.

7

367489A1

BLOCK

Tube Mounting

4шт.

8

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

11

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 4, 13

6шт.

12

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

8шт.

14

86983387

HOSE ASSY.

Lift, 1320mm Lg

2шт.

15

87448550

HOSE ASSY.

Lift, 1802mm Lg

2шт.

16

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 4, 13

2шт.

17

214-14104

HOSE CLAMP,155.45mm - 177.8mm

4шт.

18

391133A1

CLAMP

Hose

4шт.

19

87448548

HYD TUBE,22mm ID x 25mm OD x 465mm L

Lift Cylinder

2шт.

20

8606100

TUBE,25.40mm OD x 110, 659mm L

1шт.
