(35.100.010[02]) - TILT CYLINDER LINES AND FITTINGS, Z-BAR AND XR/LR

Запчасти Case 621G (35.100.010[02]) - TILT CYLINDER LINES AND FITTINGS, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS

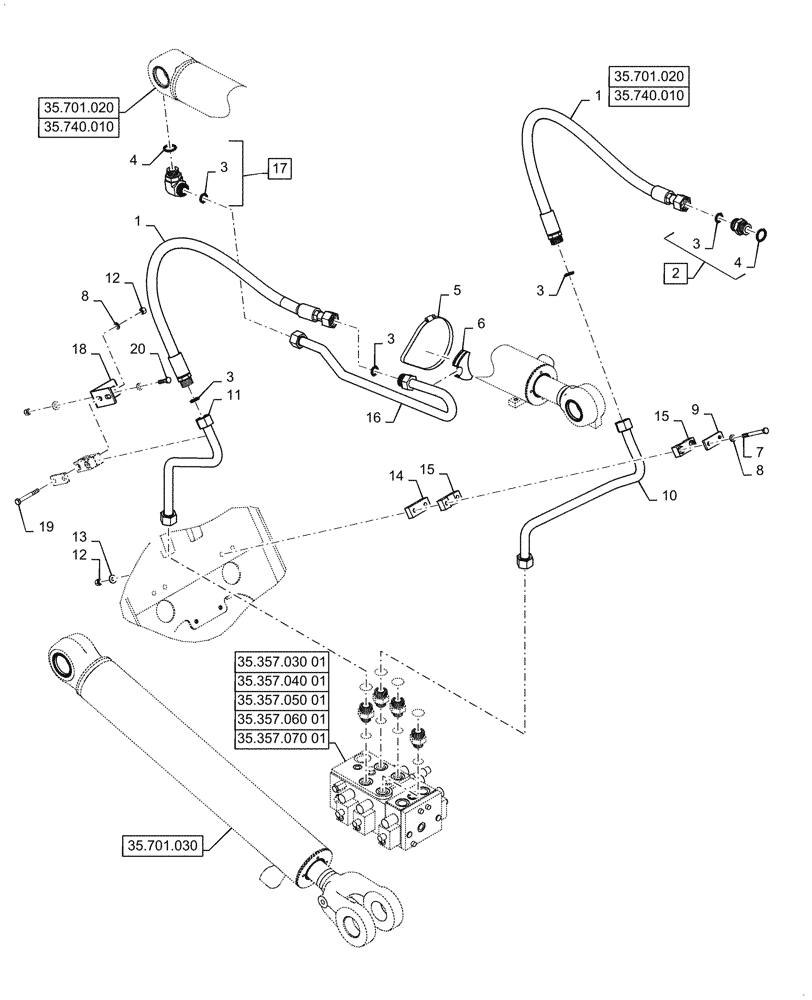

Схема запчастей Case 621G - (35.100.010[02]) - TILT CYLINDER LINES AND FITTINGS, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS
35.357.030 01
4
14
9
12
13
18
1
15
10
3
3
3
8
19
4
17
3
5
6
3
11
20
15
2
8
1
7
16
12
35.701.030
35.357.050 01
35.357.040 01
35.357.070 01
35.701.020
35.701.020
35.740.010
35.740.010
35.357.060 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

389161A1

HOSE ASSY.

Tilt Cylinder, 1161mm Lg

2шт.

2

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 3, 4

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

5шт.

4

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

5

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

6

391133A1

CLAMP

Hose

1шт.

7

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

367658A1

PLATE

Clamp Cover

2шт.

10

47850189

TUBE

Tilt Rod End, 25.4mm OD x 473.5mm L

1шт.

11

47850187

TUBE

Tilt Head End, 254mm OD x 453mm L

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

14

367658A1

PLATE

Tube Mounting

2шт.

15

367489A1

BLOCK

Tube Mounting

2шт.

16

8605367

TUBE,25.40 mm OD

Tilt Cylinder

1шт.

17

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 3, 4

1шт.

18

47847727

BRACKET

Tilt Tube

2шт.

19

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

20

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.
